Description
Nikon Brightfield measurement Scope
Objectives
CF plan 10X/0.21 Epi SLWD
CF plan 20X/0.46 Epi
CF plan 50X/0.80 Epi WD 0.54
CF plan 100X/0.95 Epi WD 0.3
Eyepieces CFIUW 10X/25
Nikon Epi Illuminator with Variable Trinocular Head
LHS-H100C-1 12V 100W Halogen Lamp W/UN2-PSU 100 120V Power Supply
Nikon Rotating table with space for 4” glass Insert. (Glass not included)
Nikon Vertical Z with course and fine manual adjustment with microscope focus, mounted to granite base.

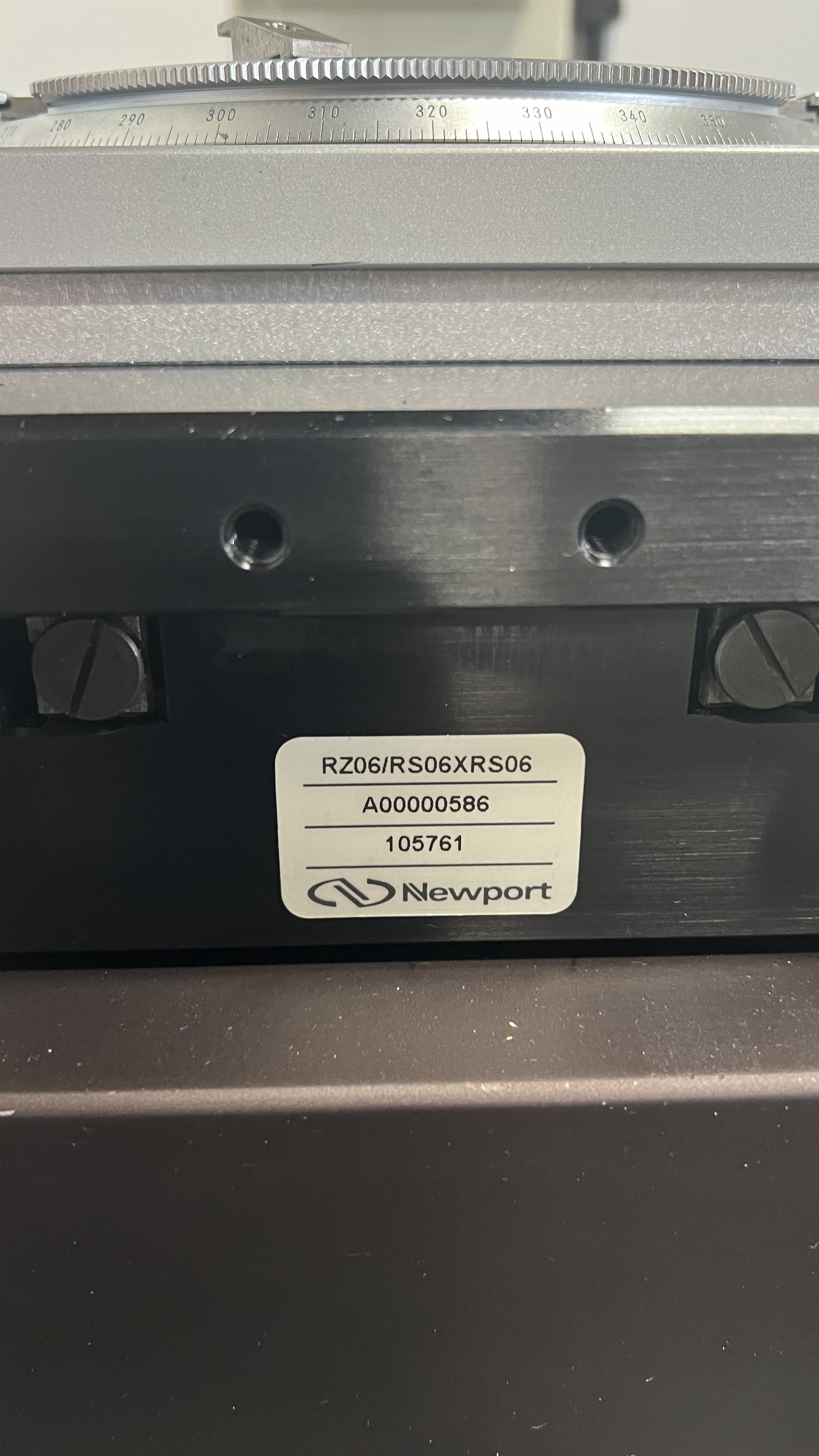

Newport RZ06/RS06 x RS06 XY stage
Travel: X, Y, Z – 6” Lead: X, Y, Course 0.5”, Fine 0.025”; Z Course 0.05”, Fine adjustment with scope’s focus rack
Encoders; 3-Heidenhain LS 473 ML 170

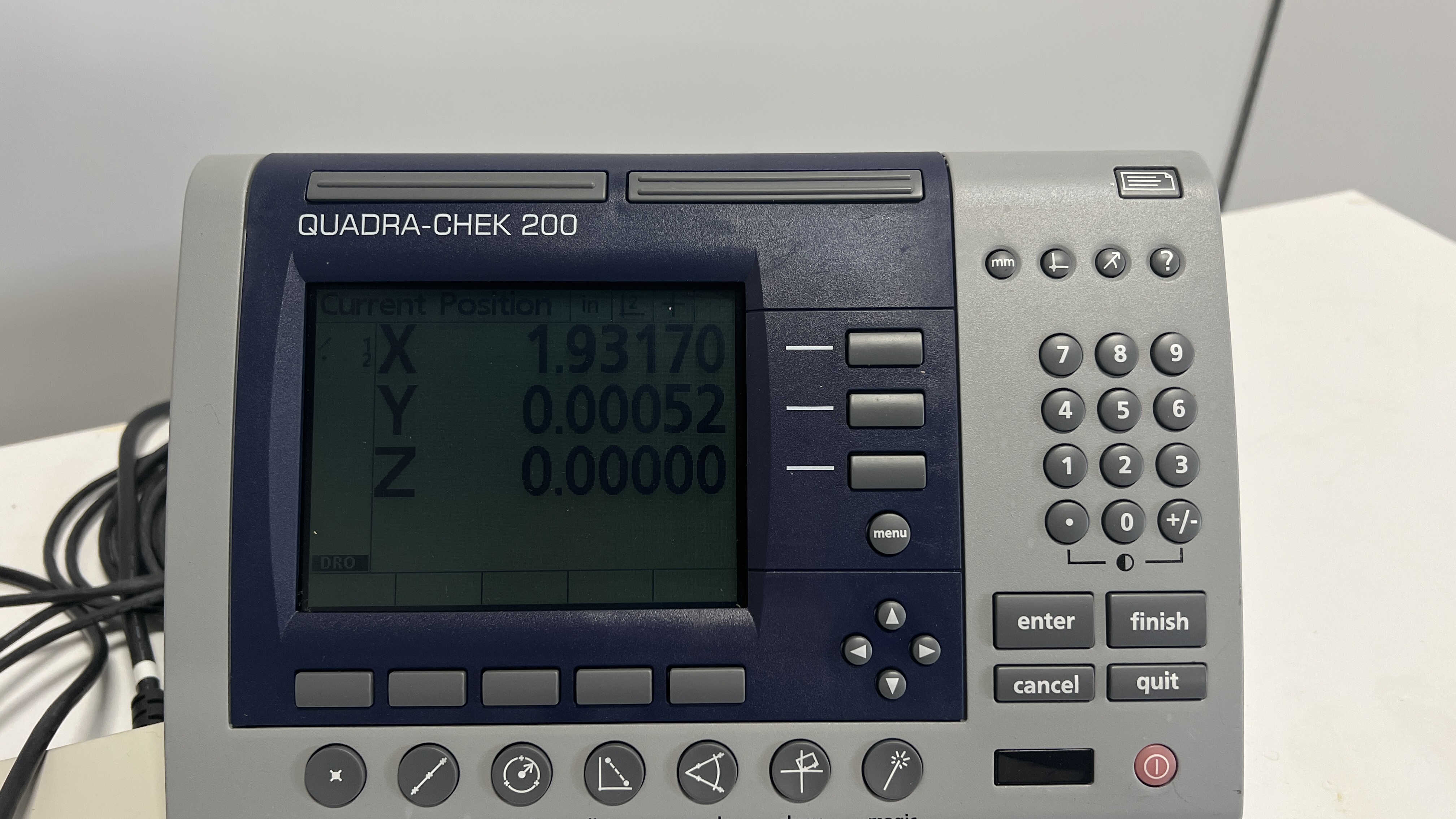

Metronics Quadra-Chek 200 DRO Model QC230-AR
The item is in used condition. Item has been tested and found to be working.
Item Representation
Please refer to the item photos to verify that this item will fit your needs. Everything included is shown in the photos.
We have limited knowledge about this item; therefore, we would not be able to answer any questions related to its specifications, technical capabilities, or whether it is suitable for a specific application. We would suggest contacting the OEM or performing an internet search to obtain additional information required.
Freight Shipping and Handling
Handling Cost: There will be a charge for handling/packing. The cost will be based on the packing method. This item will be packed in a box crate. For more information please contact us.
Handling Time: Items are typically ready to ship within 3-5 business days of receiving cleared payment.
Blind Shipments: We do not ship blind. All items ship to the address provided in the shipping details section of the sales record.
Expedited Shipping: We do not offer expedited shipping options at this time.
International Shipping: We ship within the US only and do not want our items shipped outside of the US. We do not accept orders from freight forwarders or other 3rd parties which represent international buyers.
Payment
-
Payment is to be made at checkout. If you’re prompted to request a quote for handling cost at checkout please contact us for assistance.
