Description
ScanLab / IPG Photonics on the fly laser marking/ scribing system.
Approximate working distance: 10”

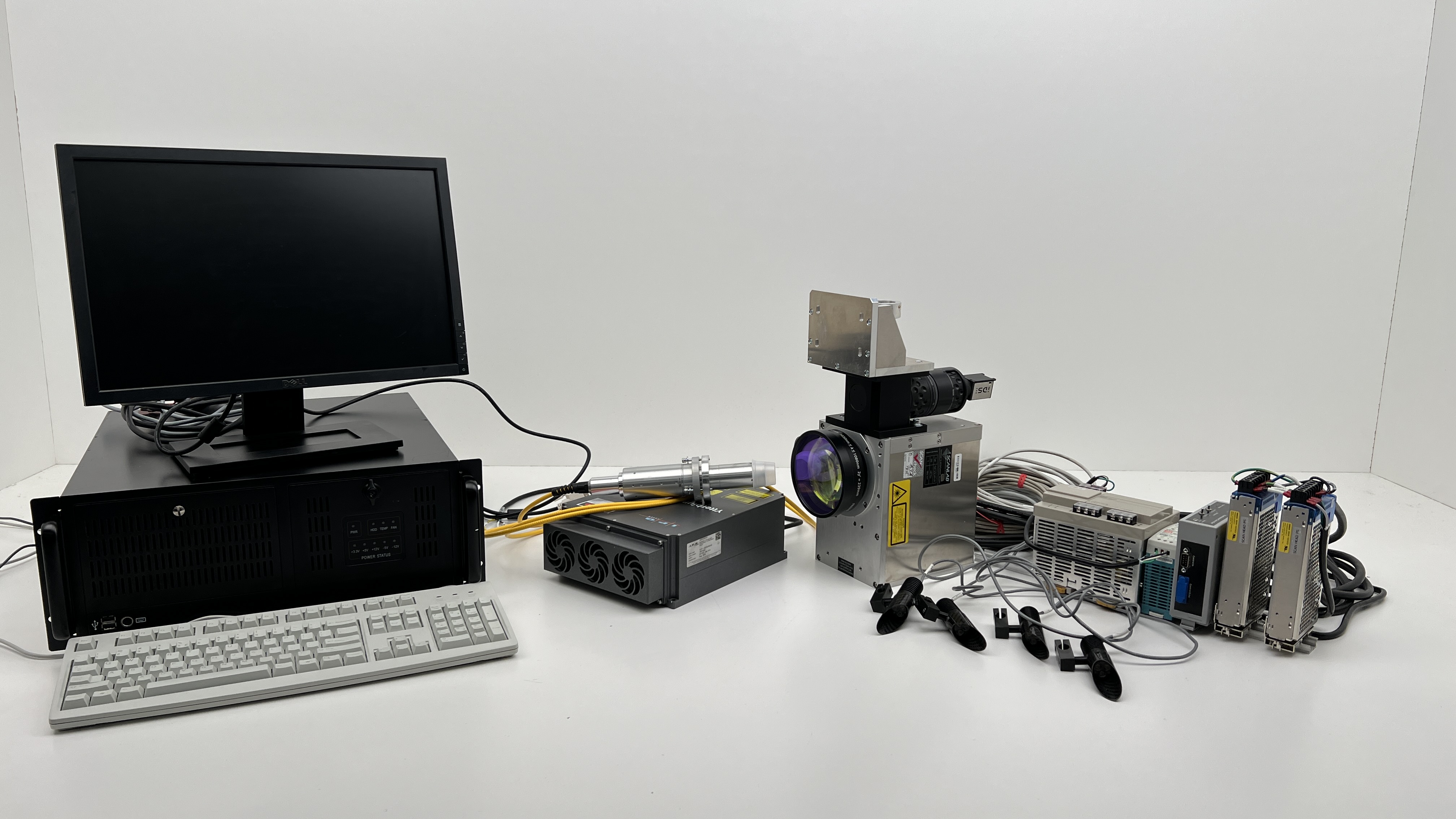

Includes:
Scanner

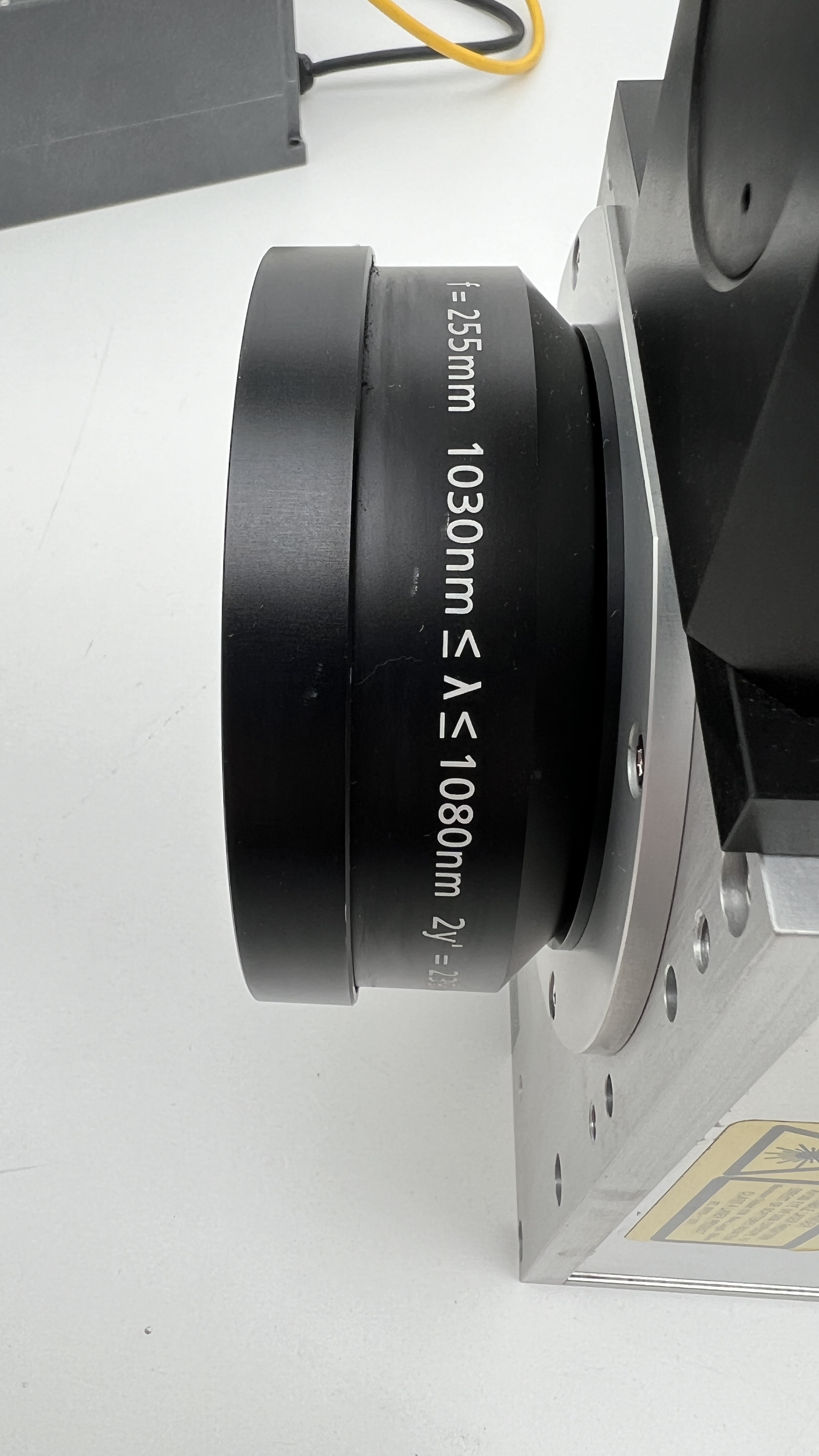

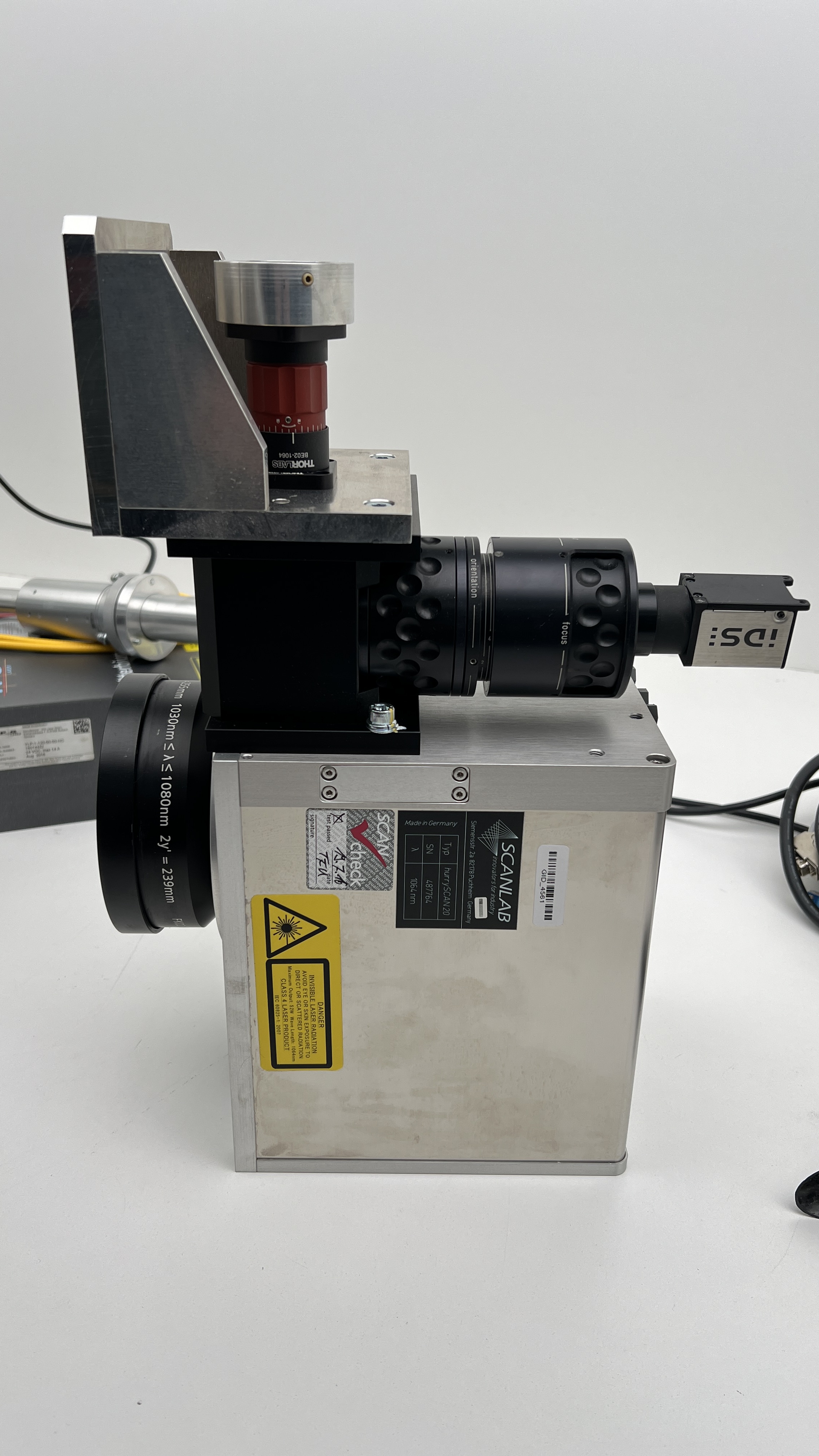

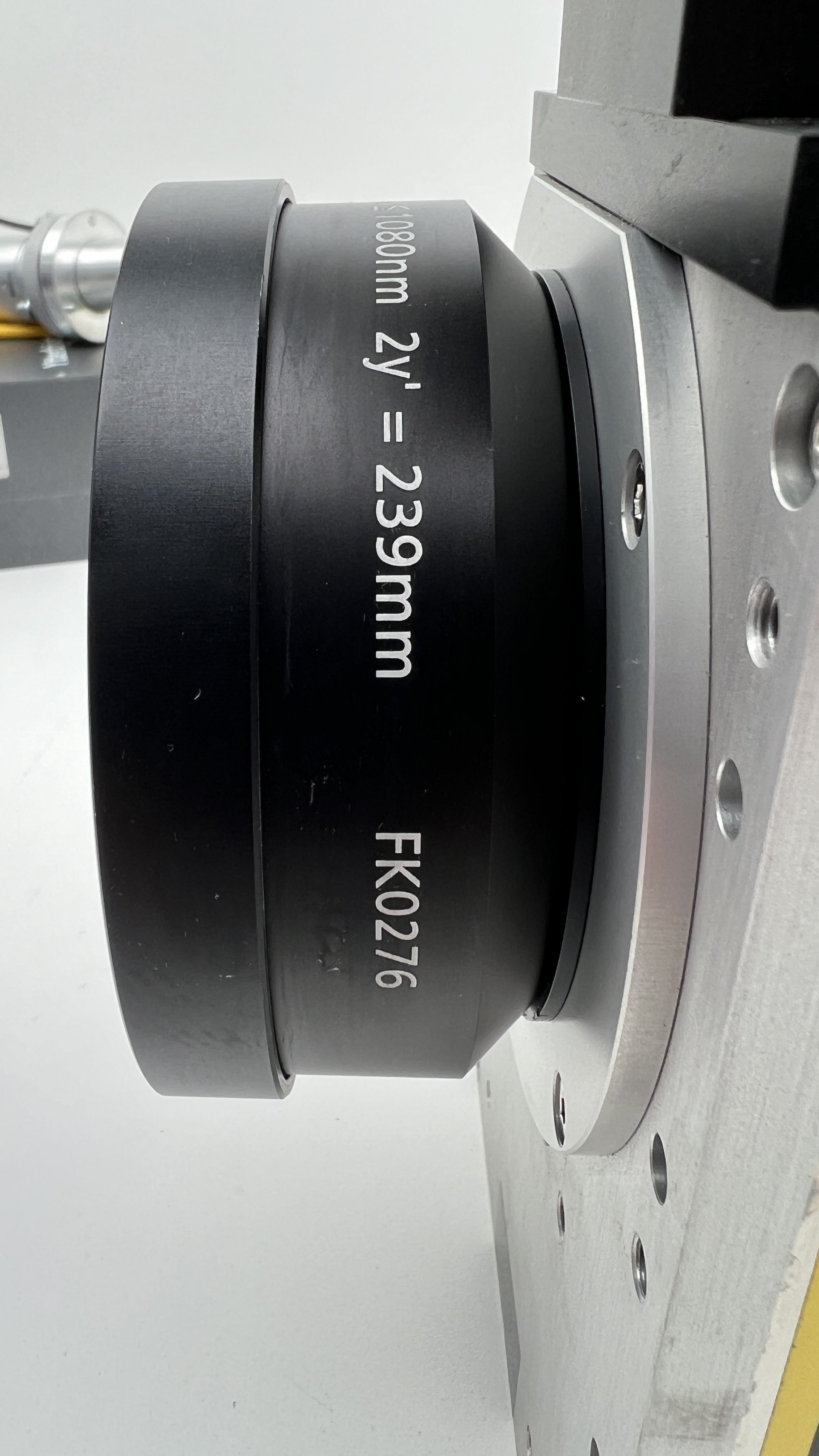

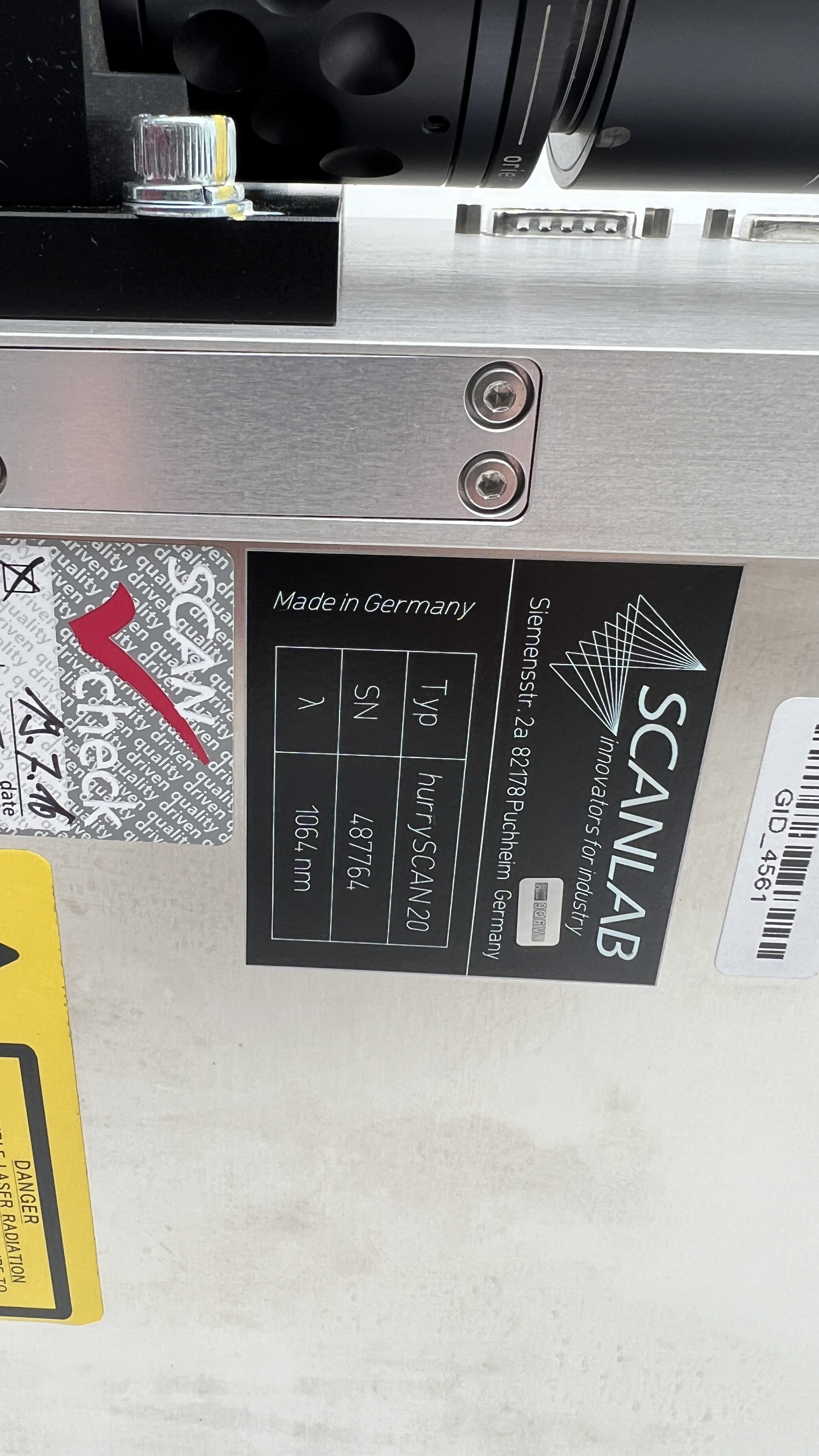

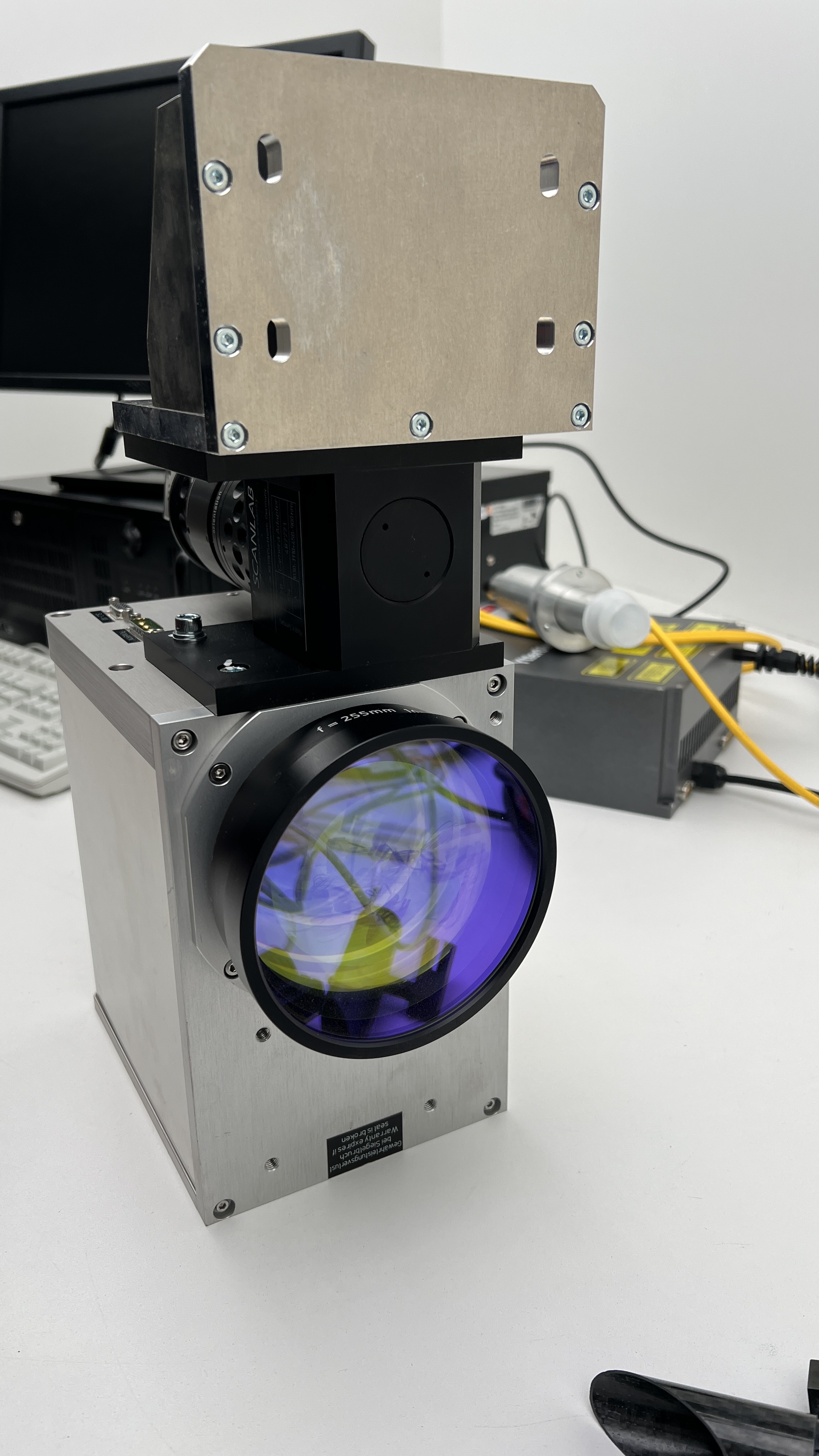

ScanLab HurryScan 20 Scan head, with 255mm lens (FK0275)

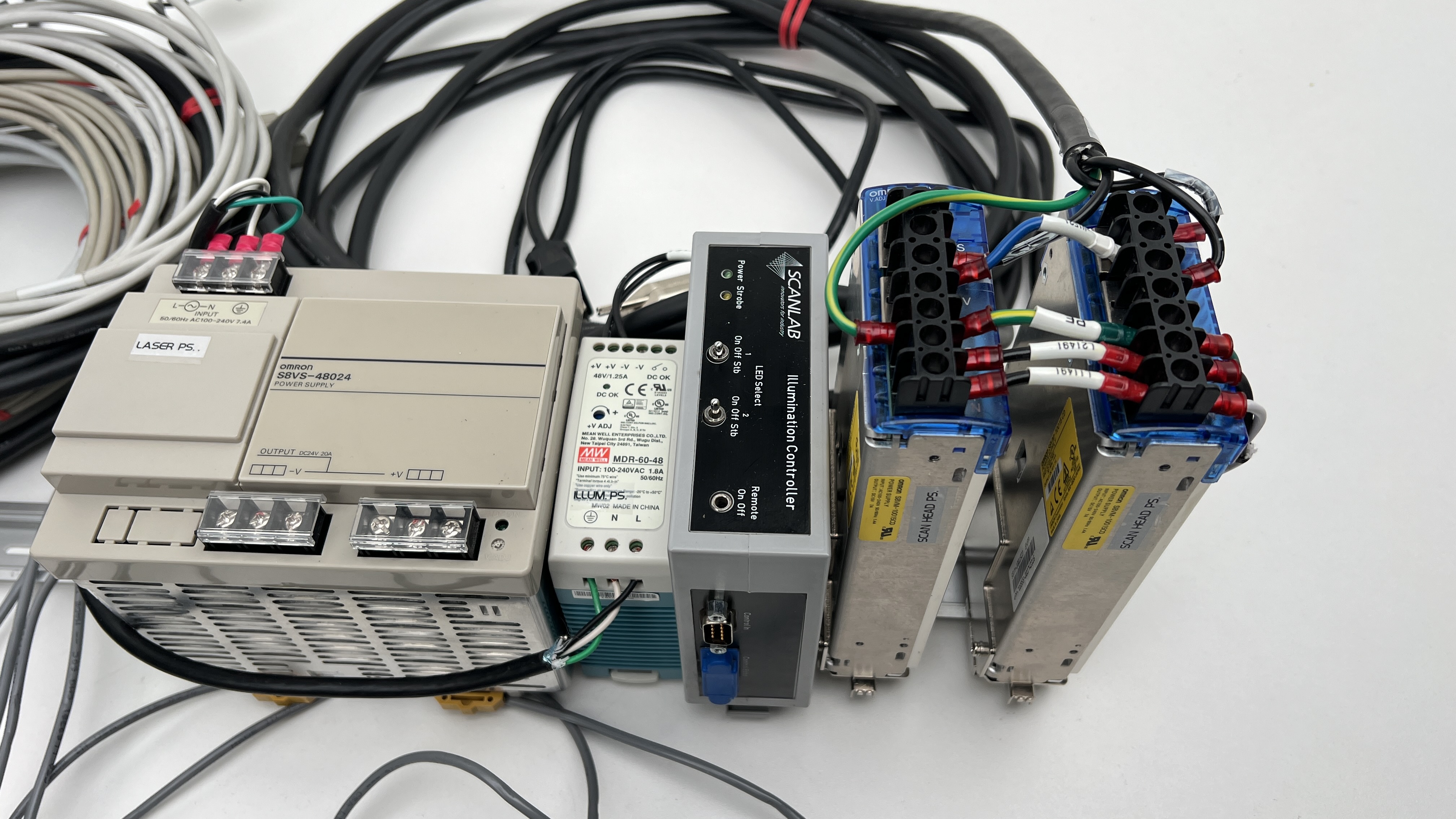

2- Omron S8VM-10015 CD, Scan head power supplies

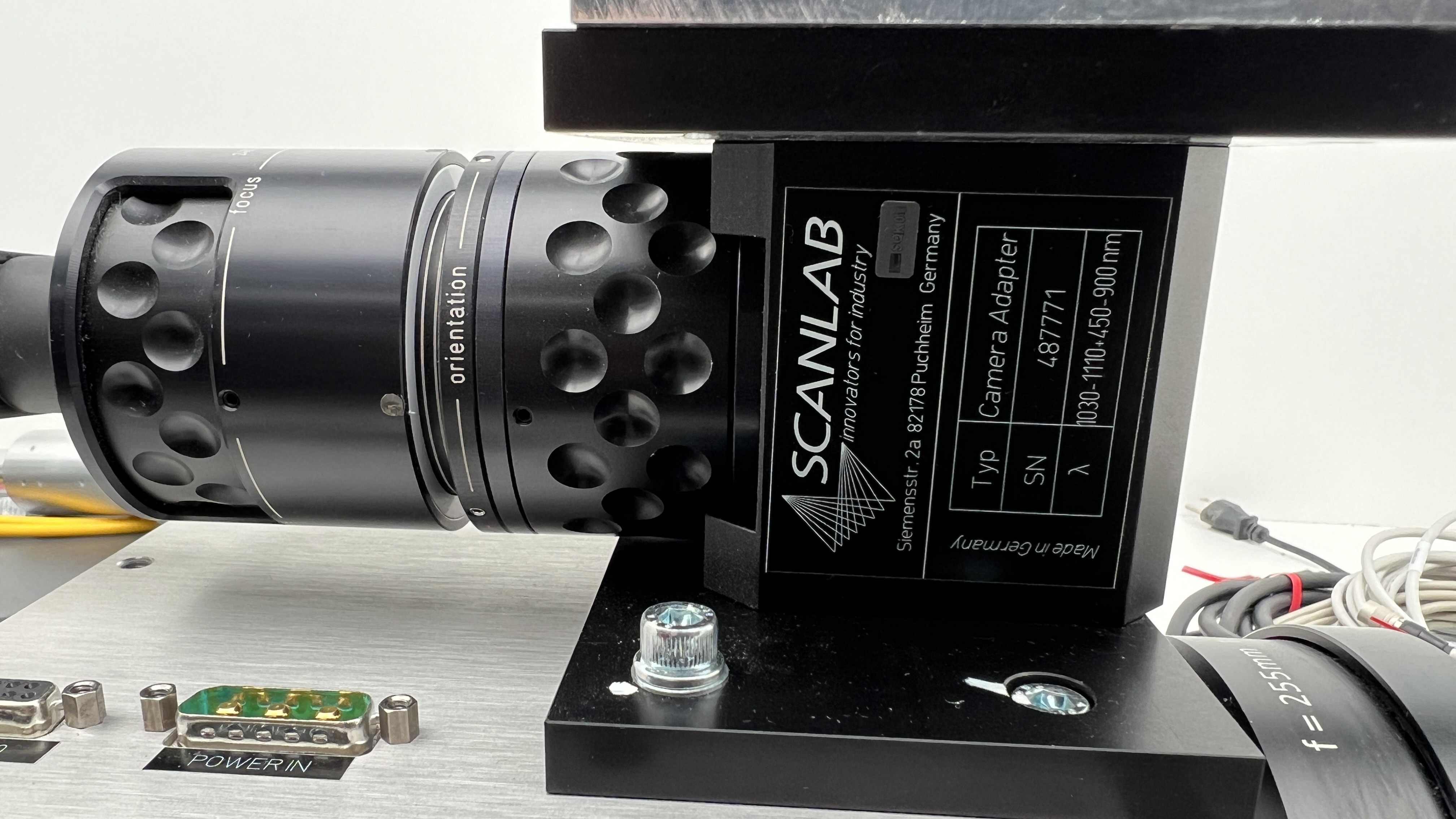

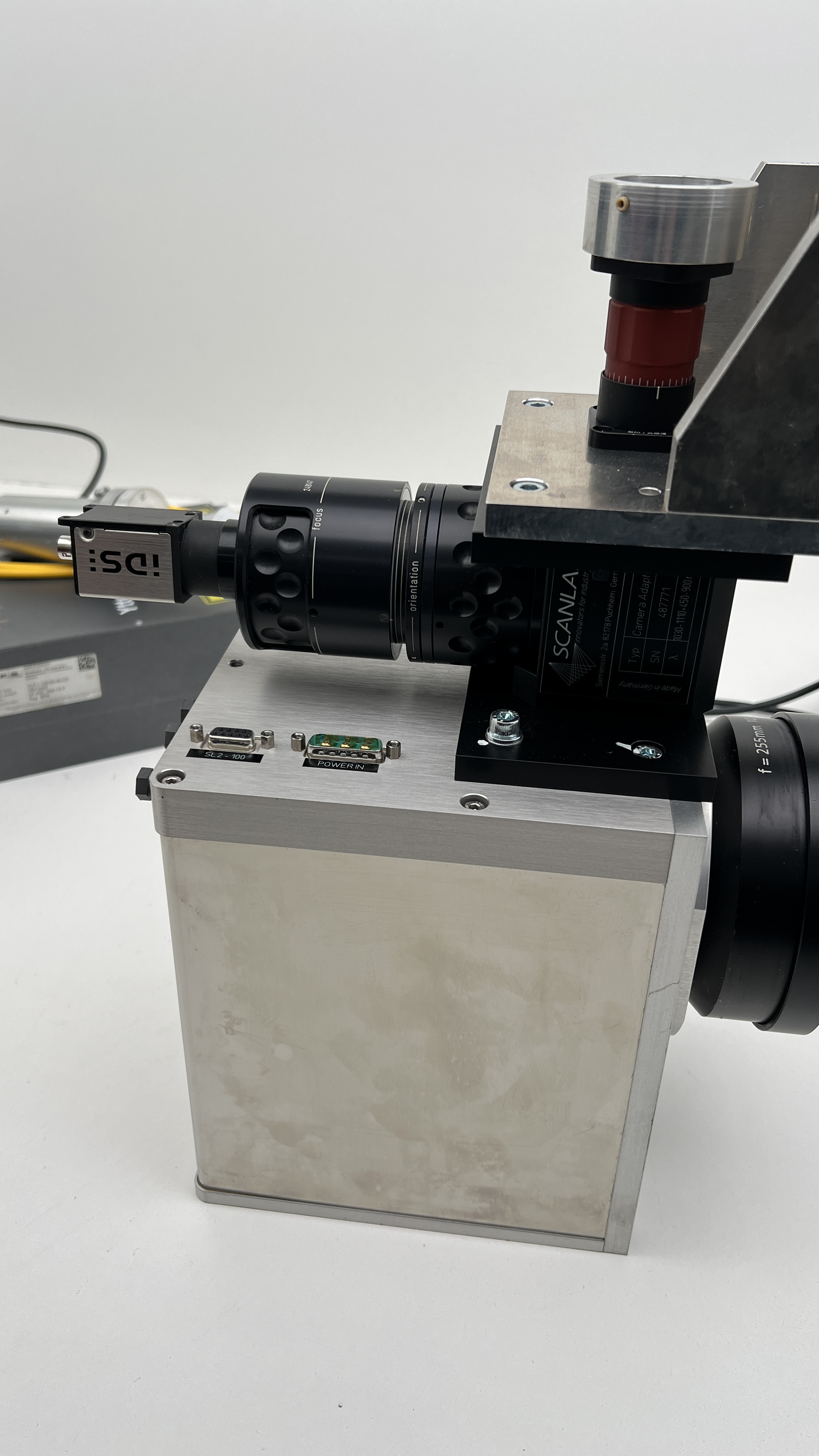

ScanLab Camera Adapter, Range of observation 1030-1110nm, 450-900nm

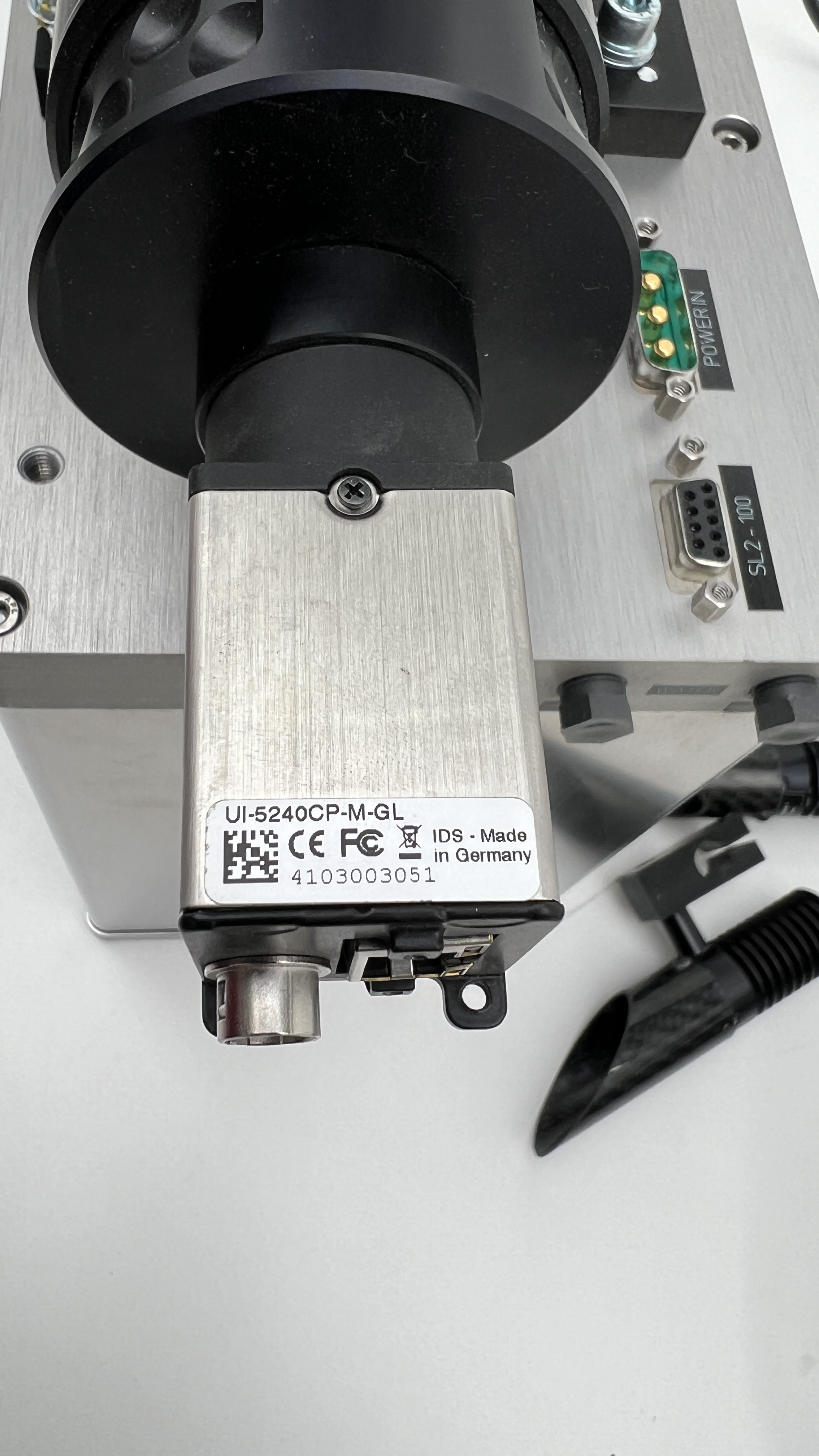

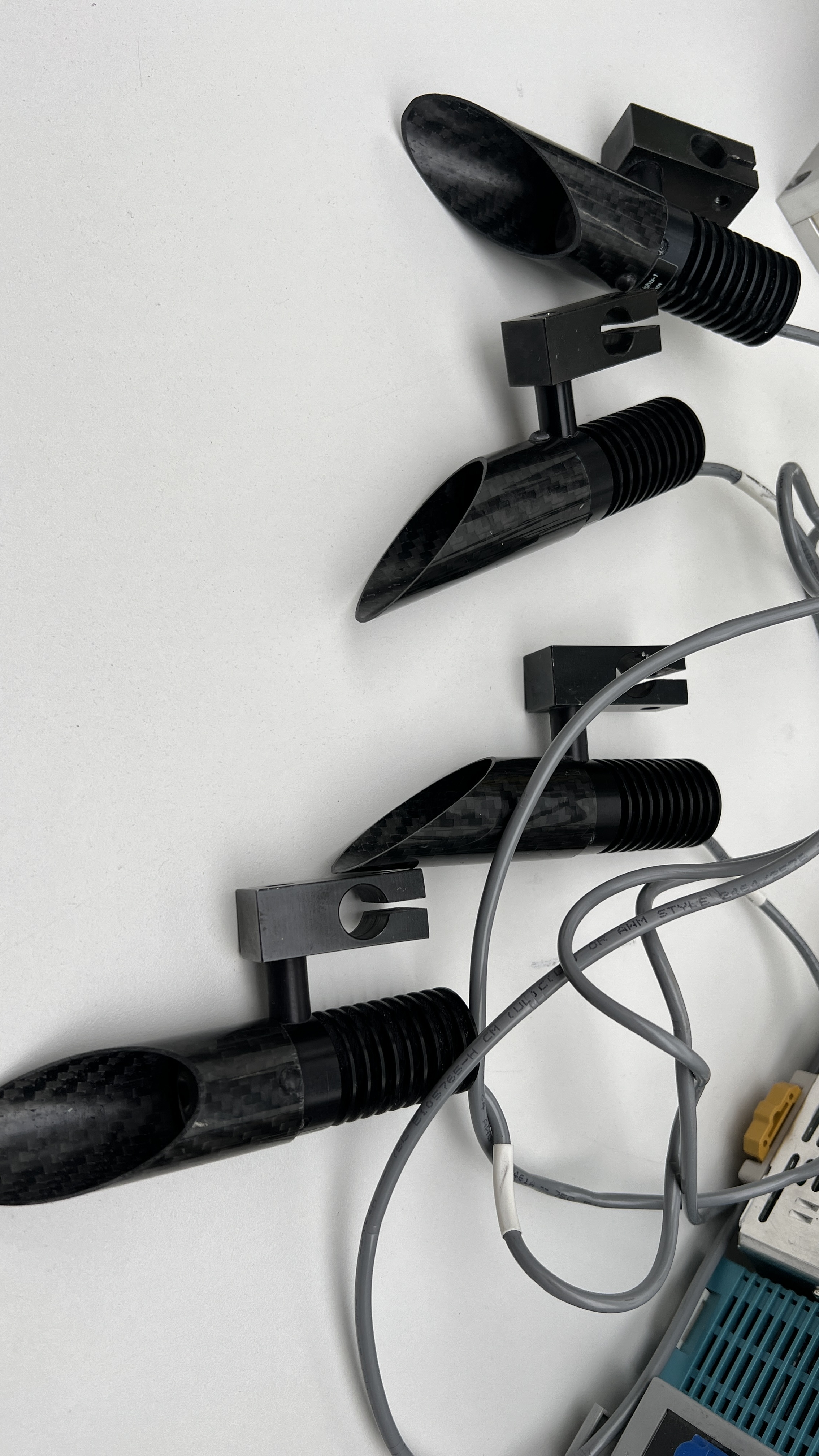

ScanLab vision package, with ScanAlign Software (installed on PC described below) Illumination controller, strobe lights(617nm led), and Mean Well MDR-60-48 power supply. IDS U EYE, UI-5240CP-M-GL 1.3-megapixel industrial camera.

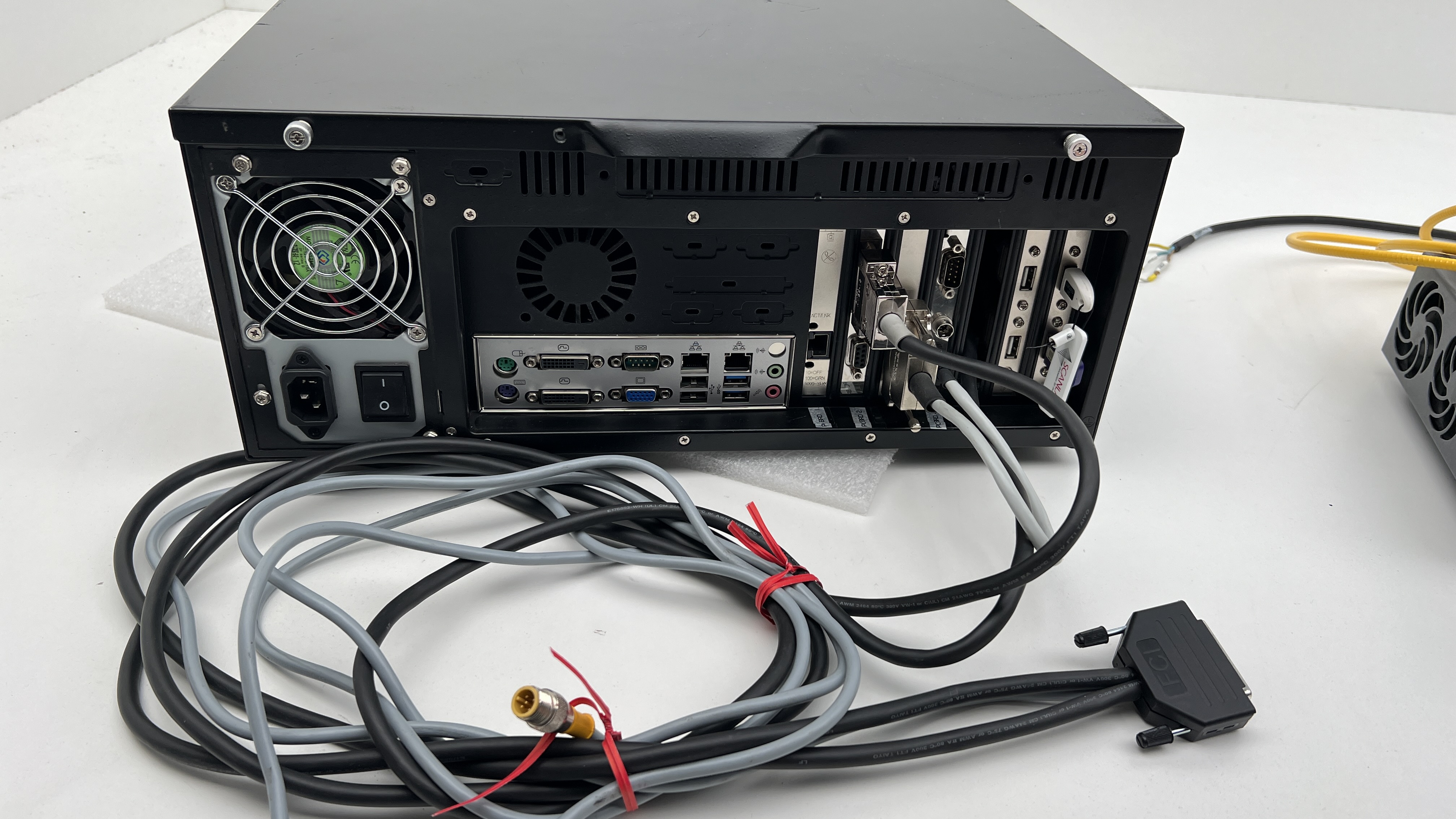

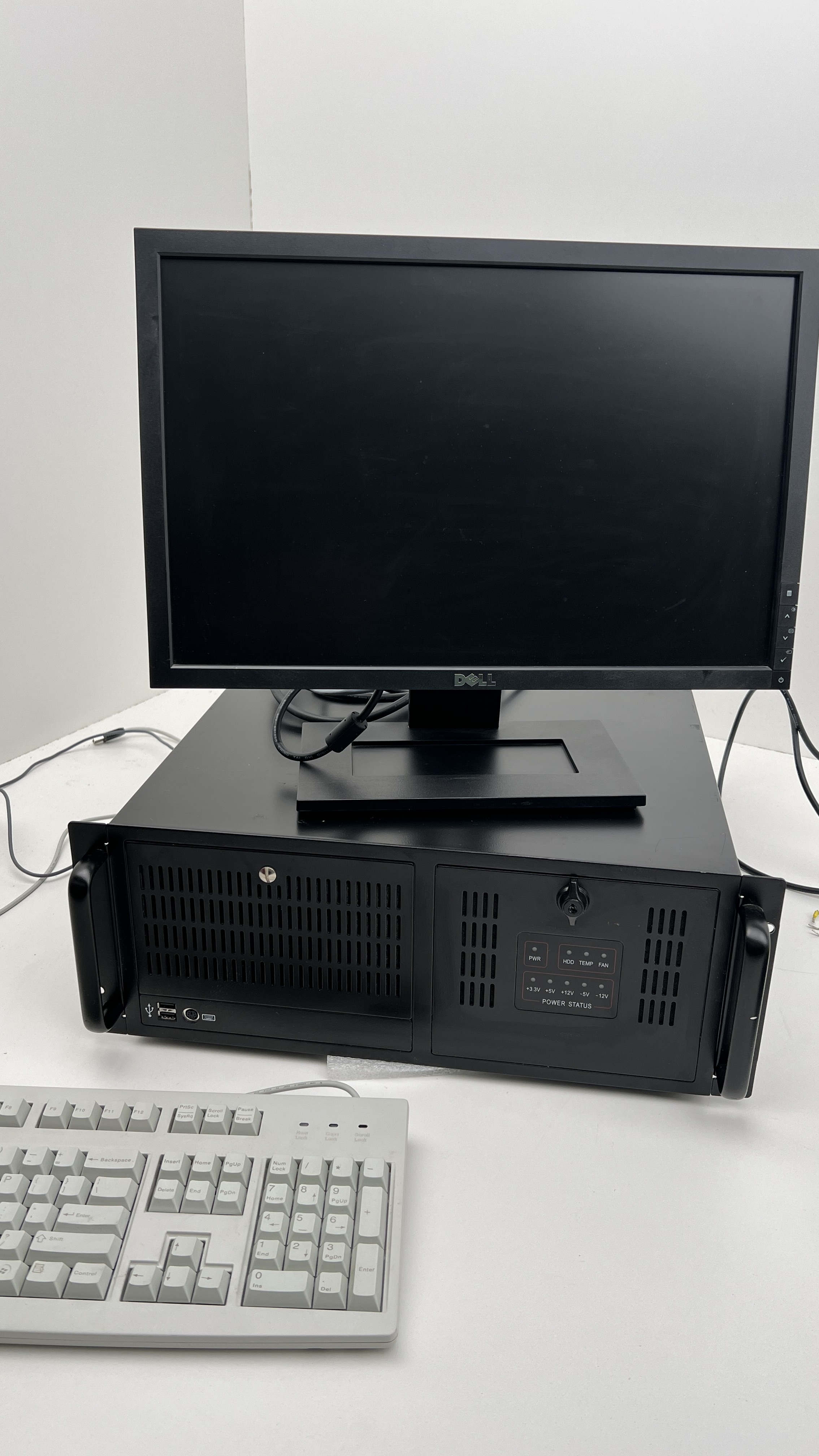

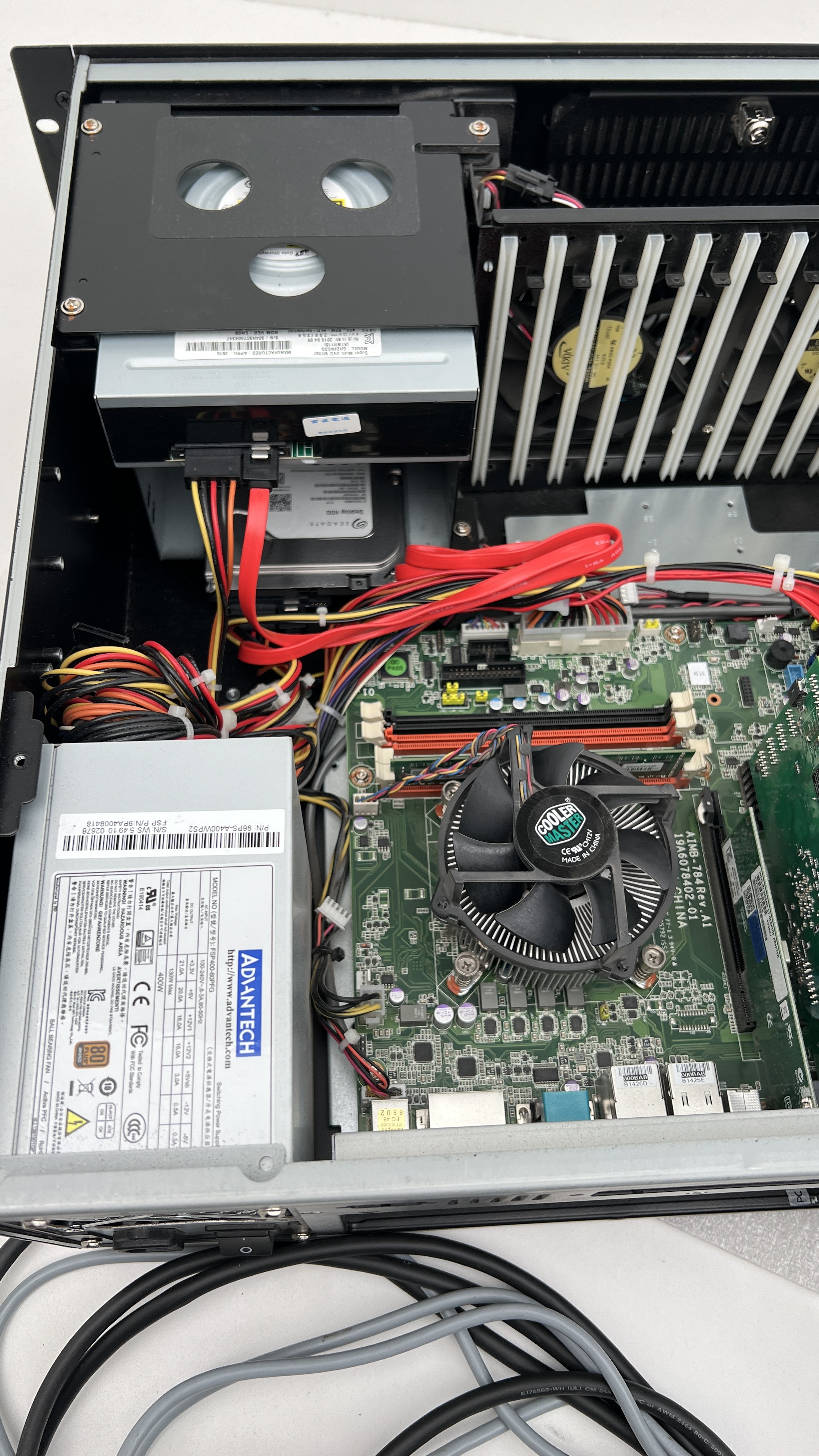

Anvantech industrial PC ACP-4000MBw/400W PSU w smart control BD, Spec No. ACP4000MB-40CE REV:AO, monitor, keyboard and mouse included.

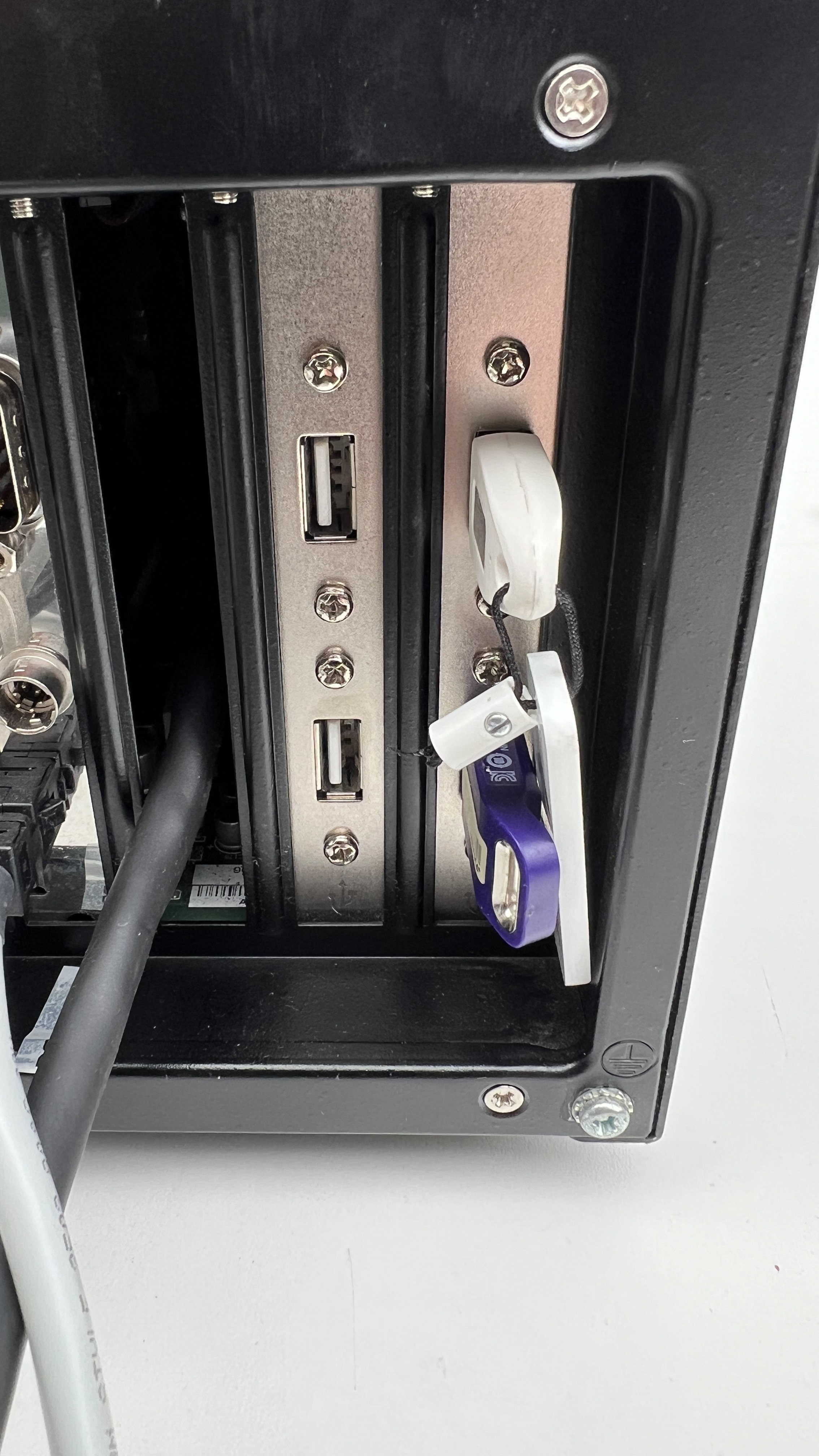

Window 7, ScanLab LaserDesk and ScanAlign software loaded with both dongles included

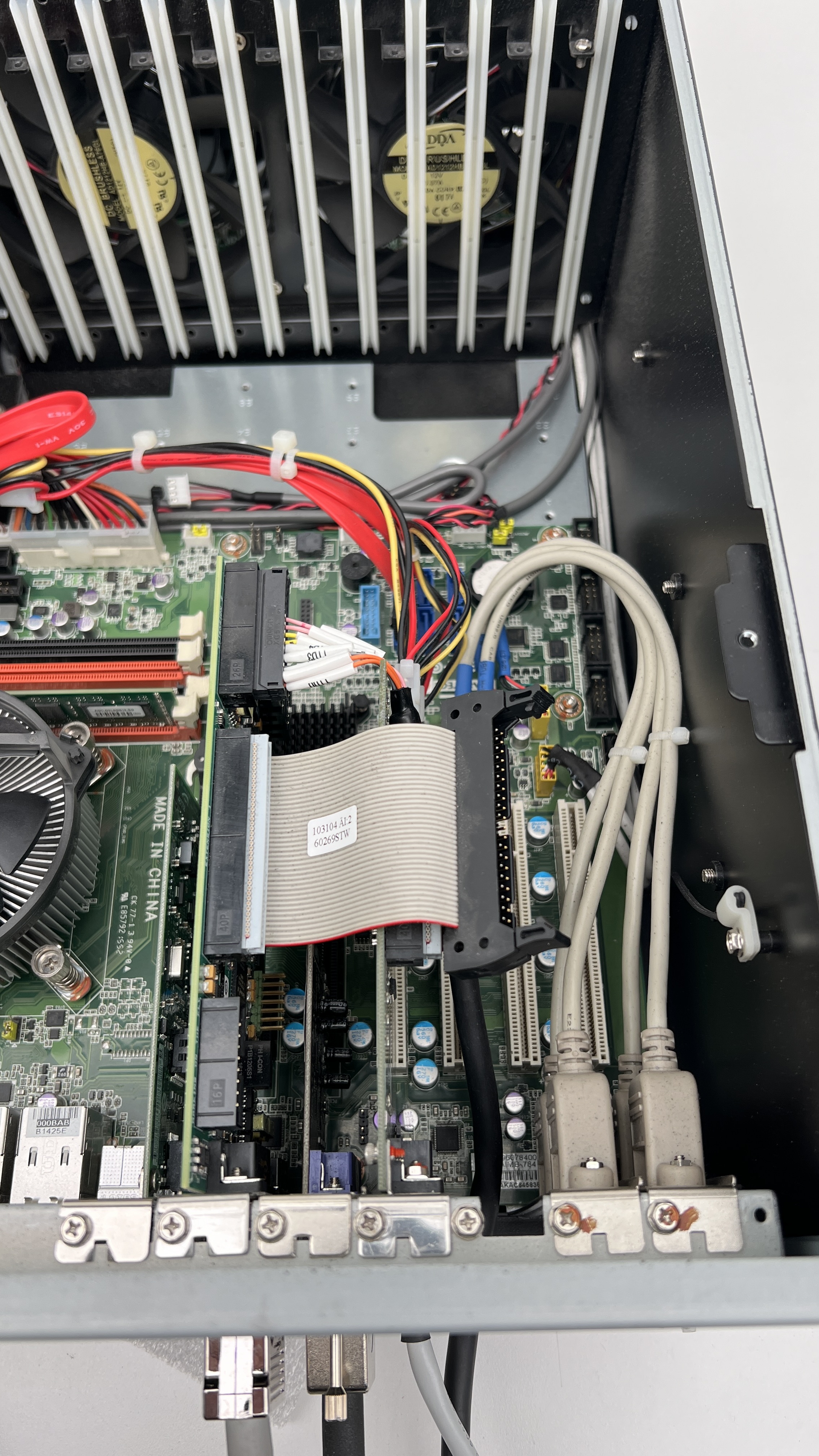

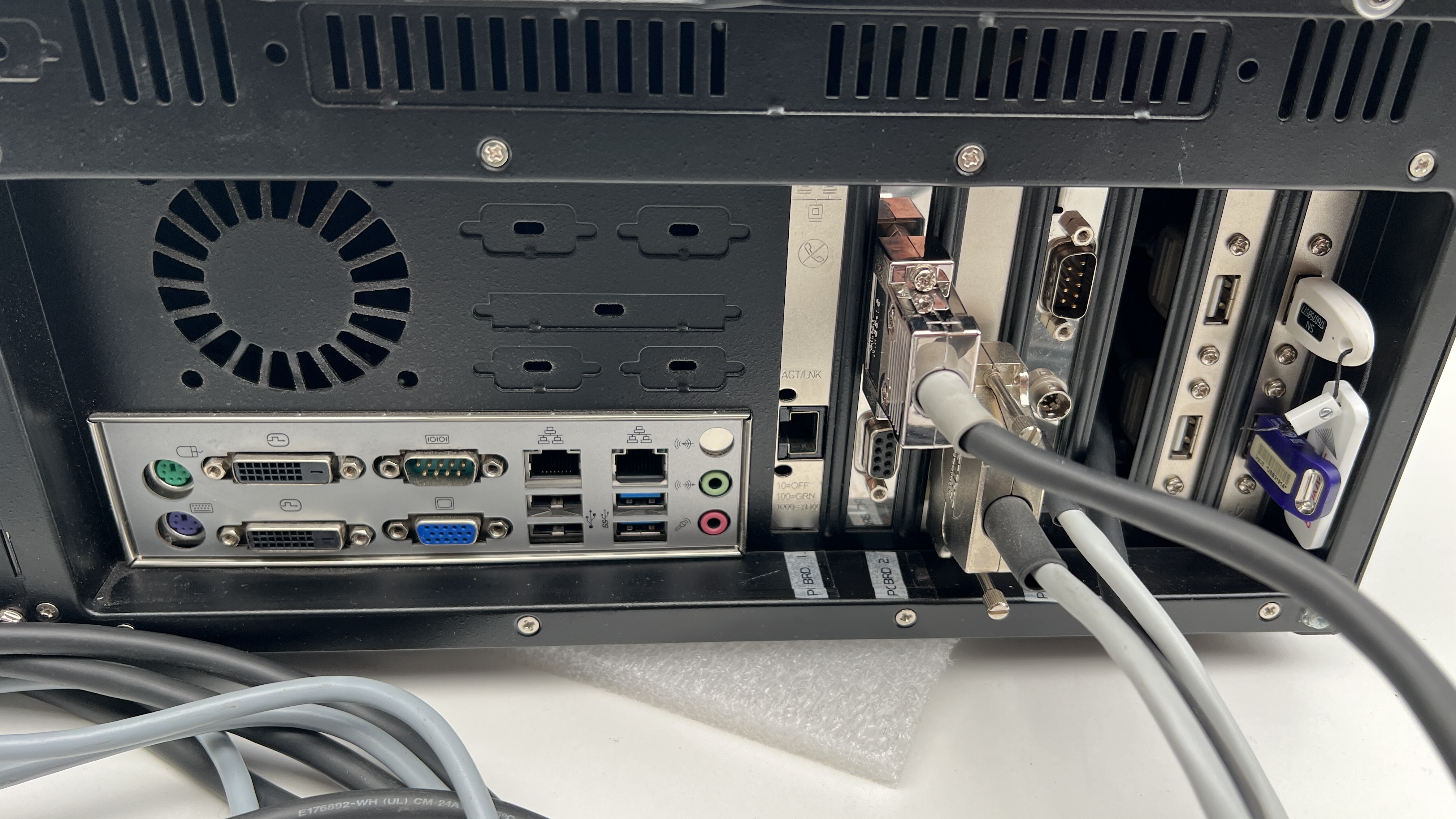

ScanLab RTC5 Control board, ScanAlign interface cards installed in PC with associated cables.
Laser

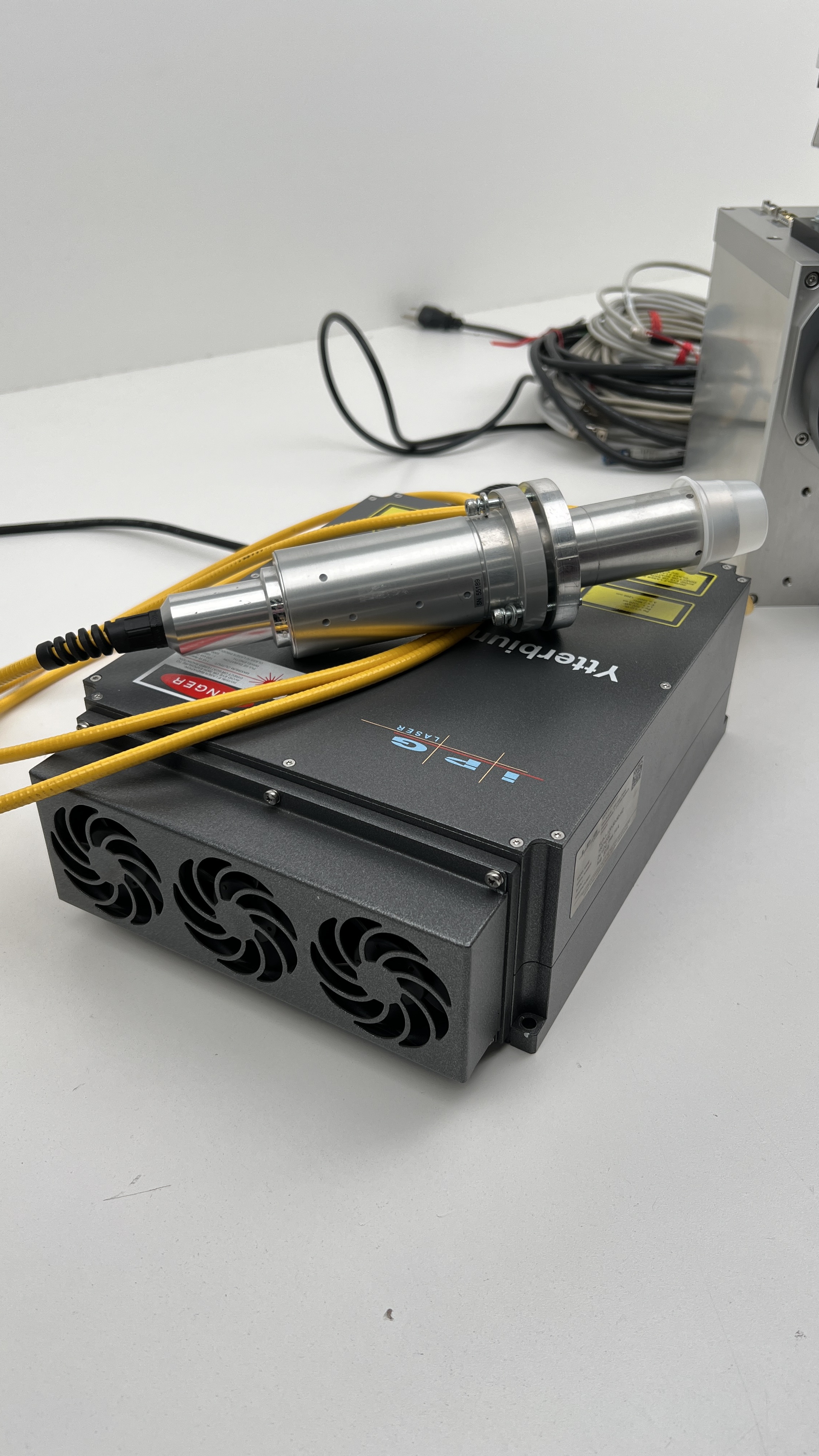

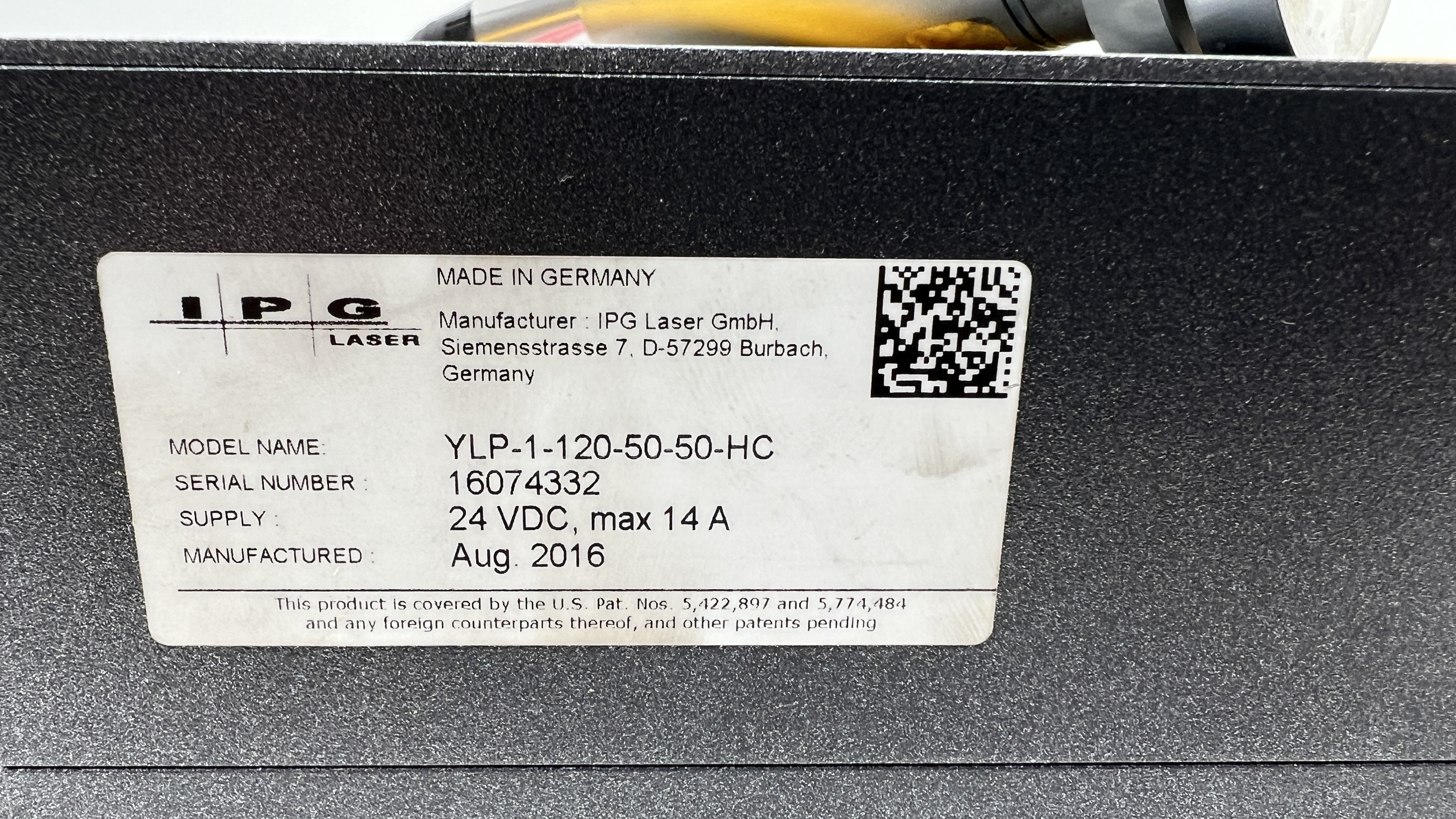

IPG photonics 50W Pulsed Ytterbium Fiber Laser, Model YLP-1-120-50-50-HC
Fiber length: approx. 3 meters, Fiber diameter: approx. 6mm
Input Voltage:24VDC, current 9-11Amp. (Supplied by included Omron S8VS-48024 power supply.)
Control Interface B1

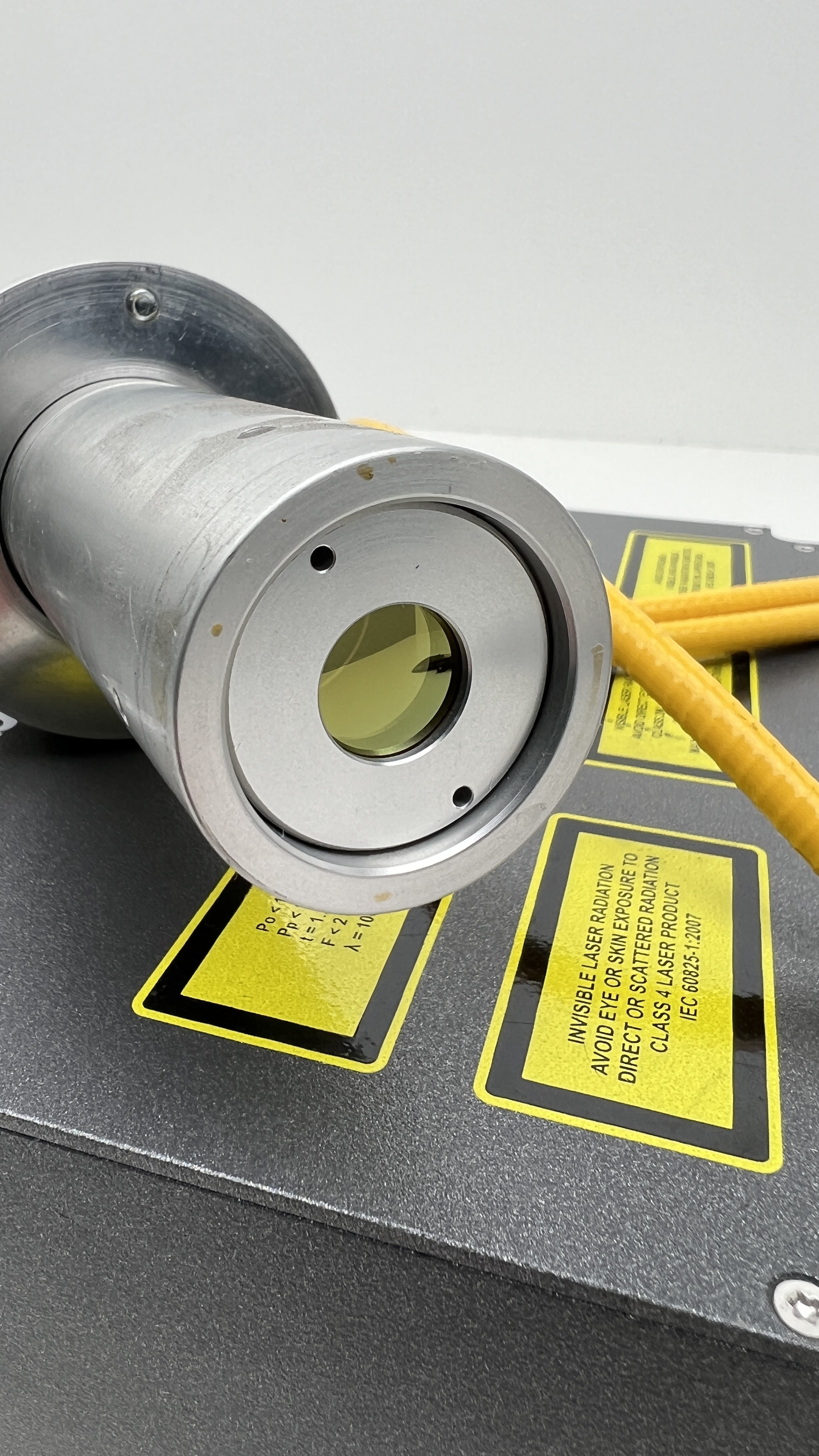

Also includes Thorlabs BE02-1064 High power beam expander.
System
System was removed from working Process line and was test post removal. Was tested with the scribe program that was used on the process line. System can be reprogrammed with included ScanLab LaserDesk software.

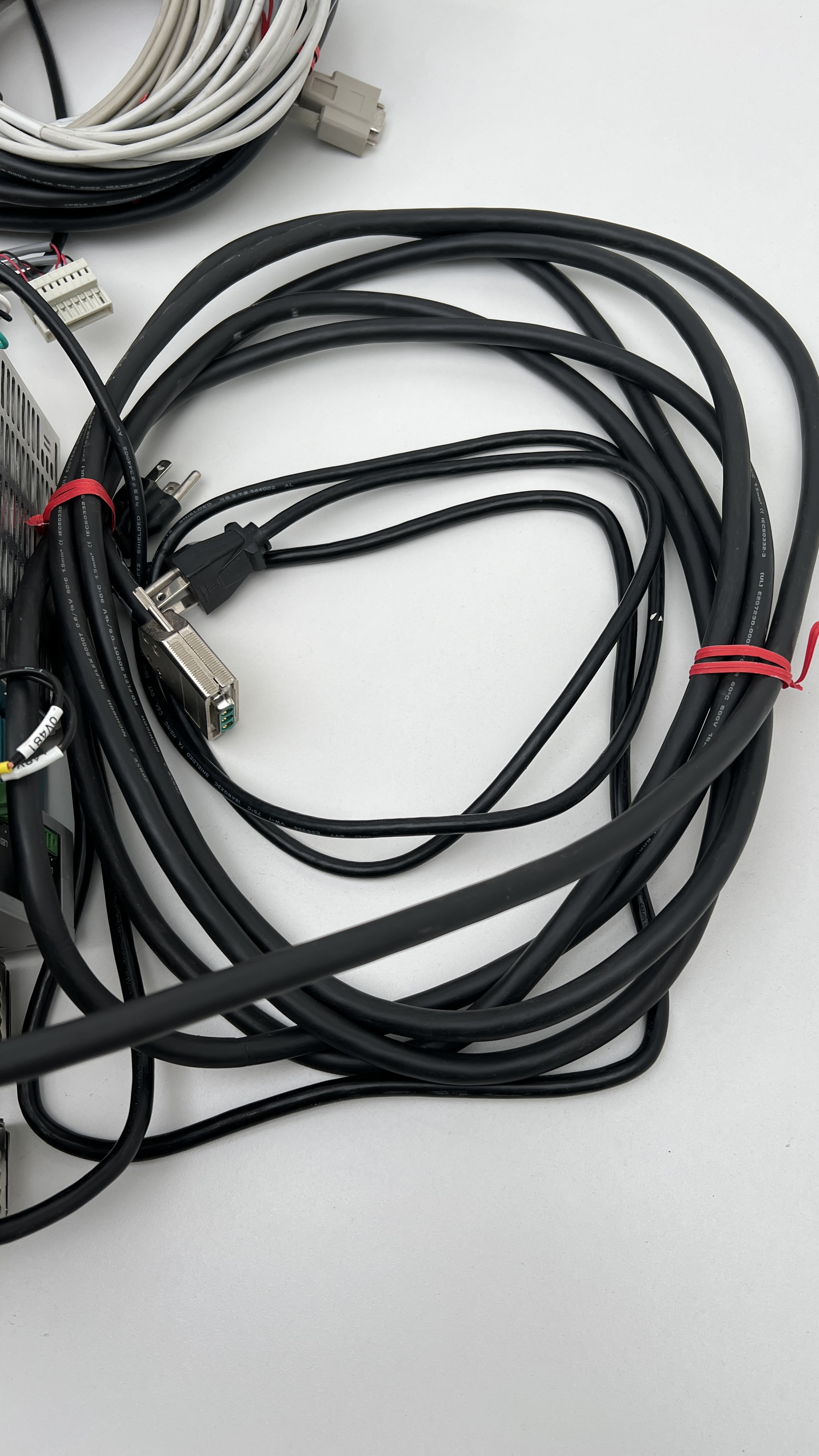

Cables and components are labeled. Scan head and laser, along with led strobe lights would need to be mounted in a work station specific to the intended task.
Documentation is available and included with purchase.

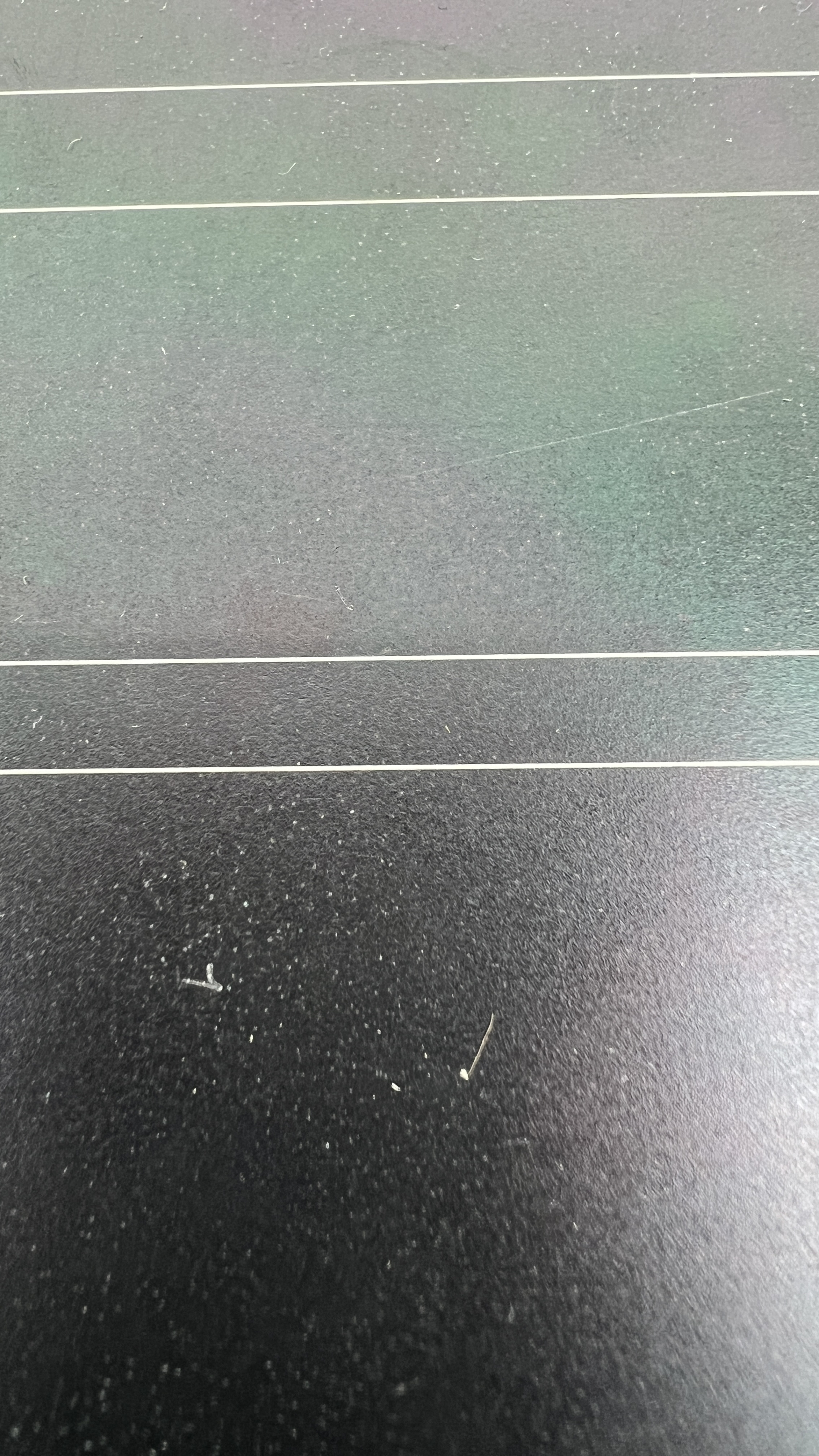

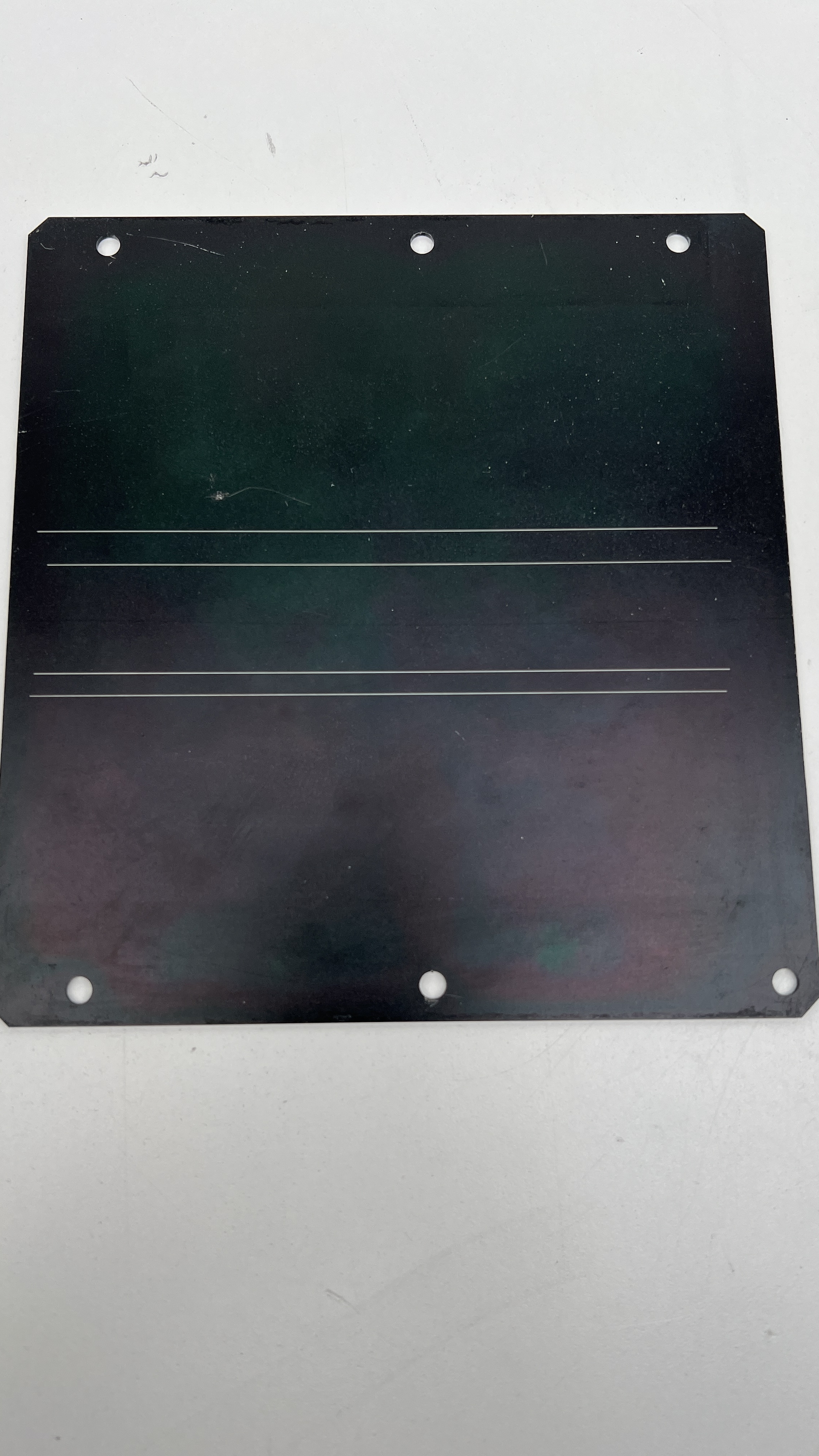

Test sample is shown in photos, anodized steel plate with 4 scribed lines
The item is in used condition. Item has been tested and found to be working.
Item Representation
Please refer to the item photos to verify that this item will fit your needs. Everything included is shown in the photos.
We have limited knowledge about this item; therefore, we would not be able to answer any questions related to its specifications, technical capabilities, or whether it is suitable for a specific application. We would suggest contacting the OEM or performing an internet search to obtain additional information required.
