Description
Microscope configuration: Brightfield & DIC

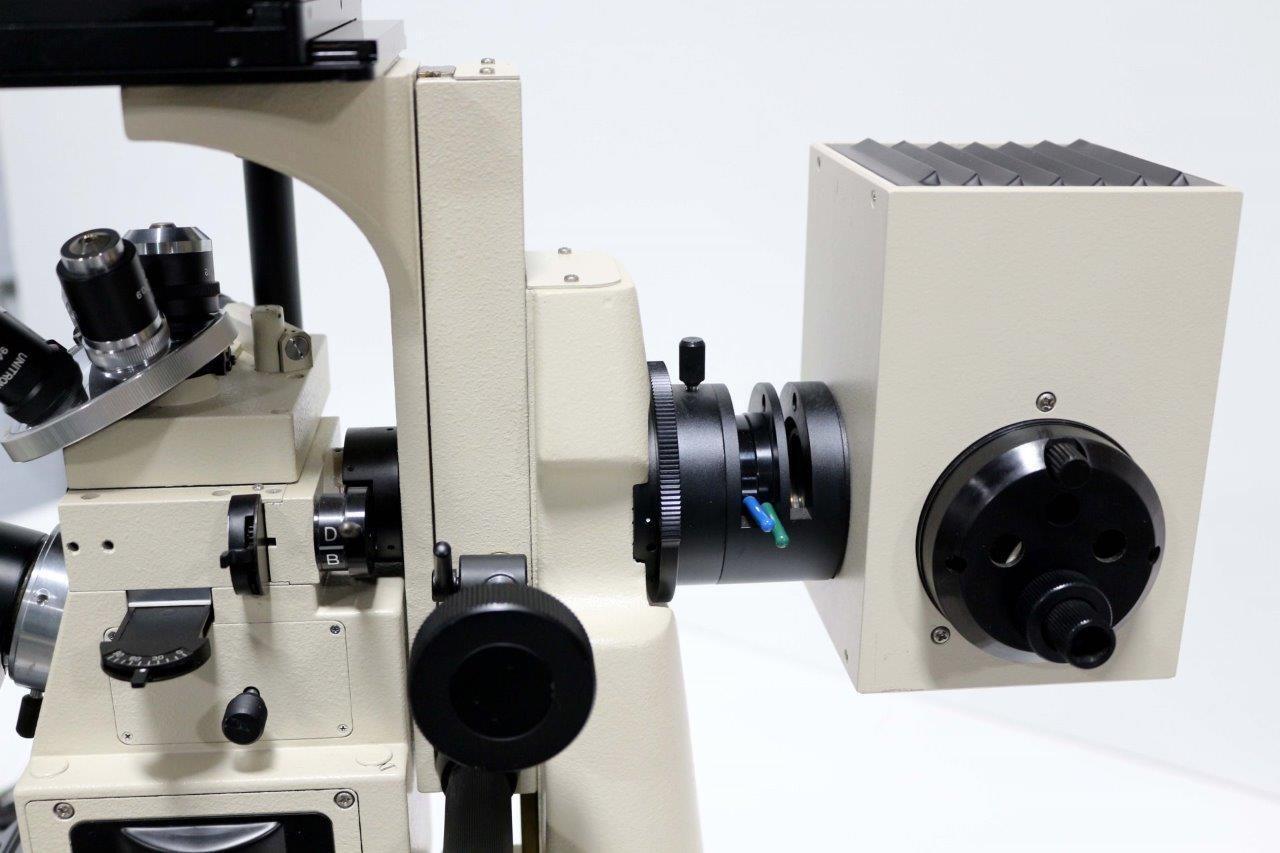

Illuminations type: Reflected/transmitted light

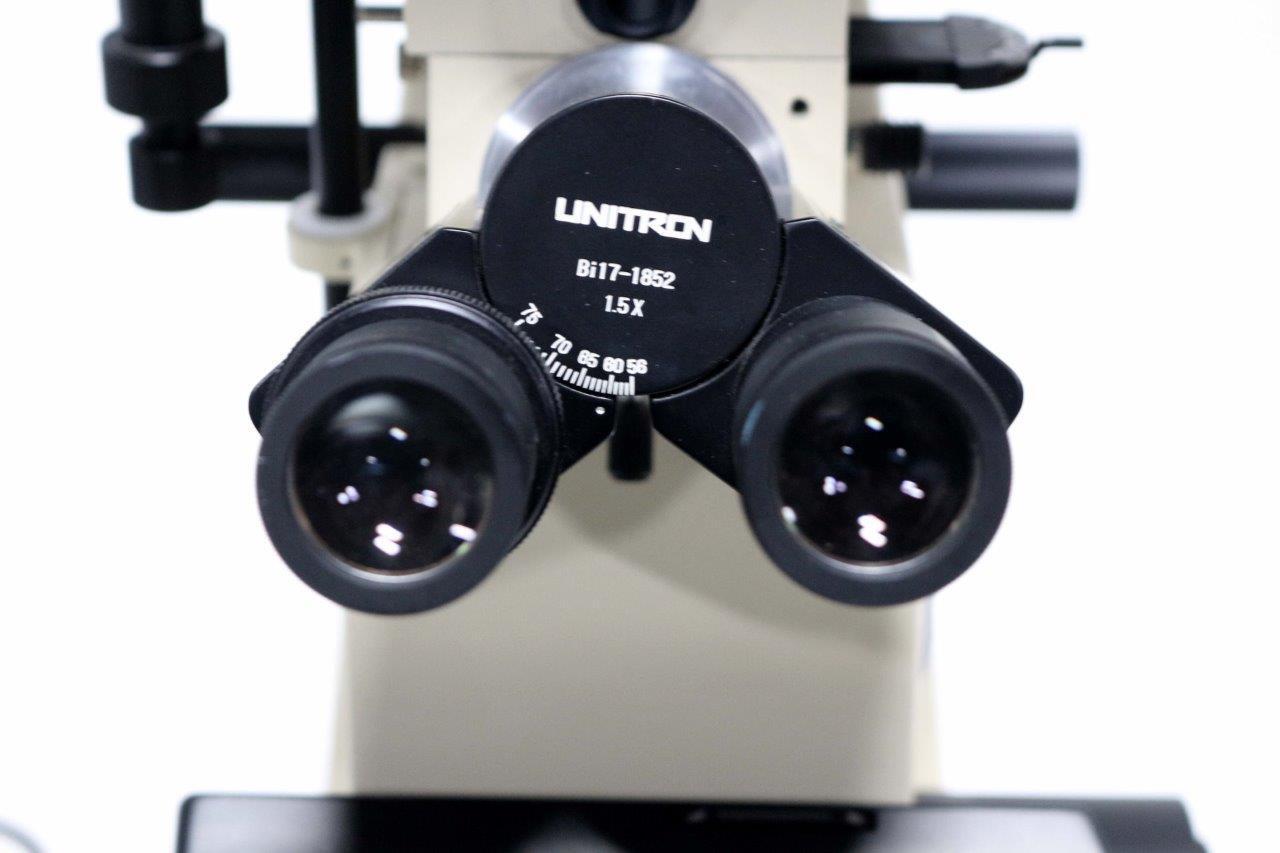

Binocular angle: 45

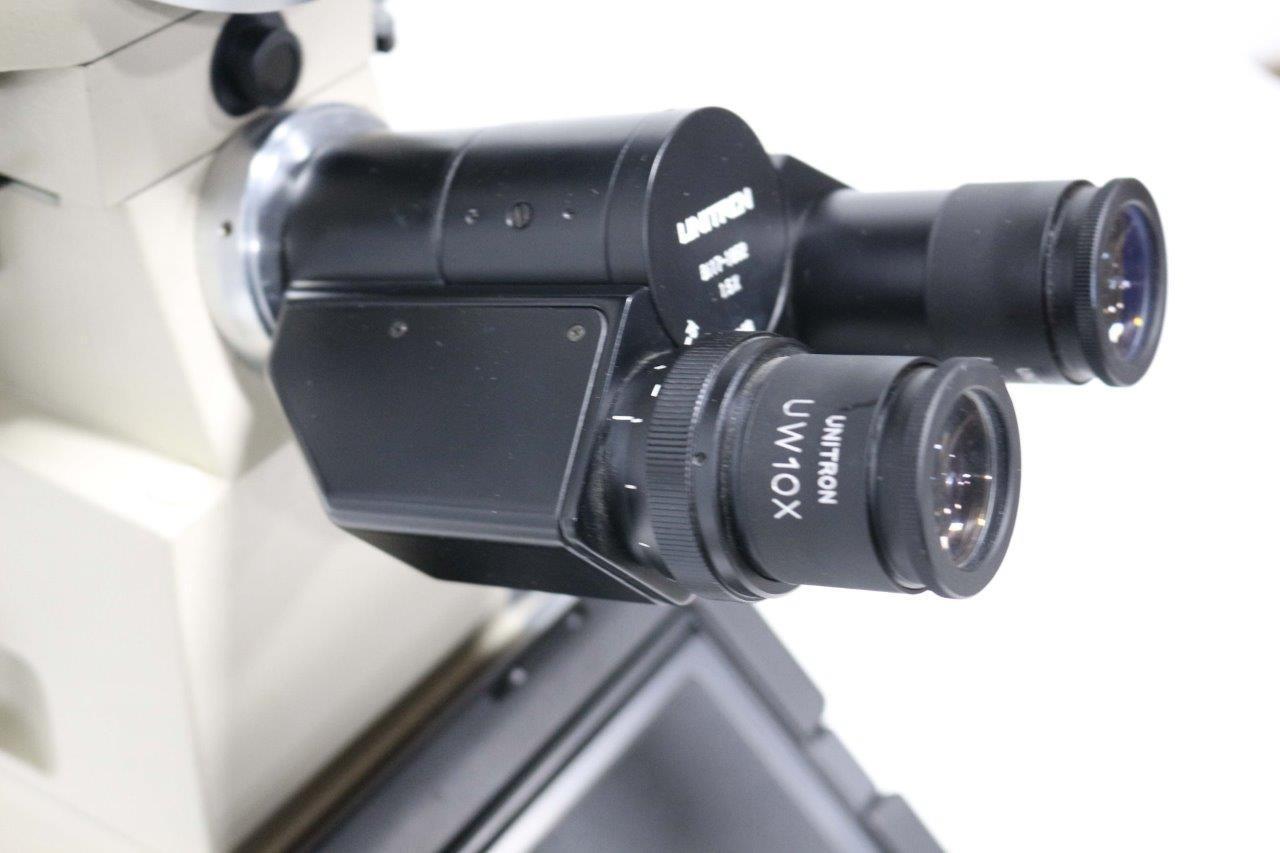

Unitron UW 10X eyepieces
Field number: 24mm

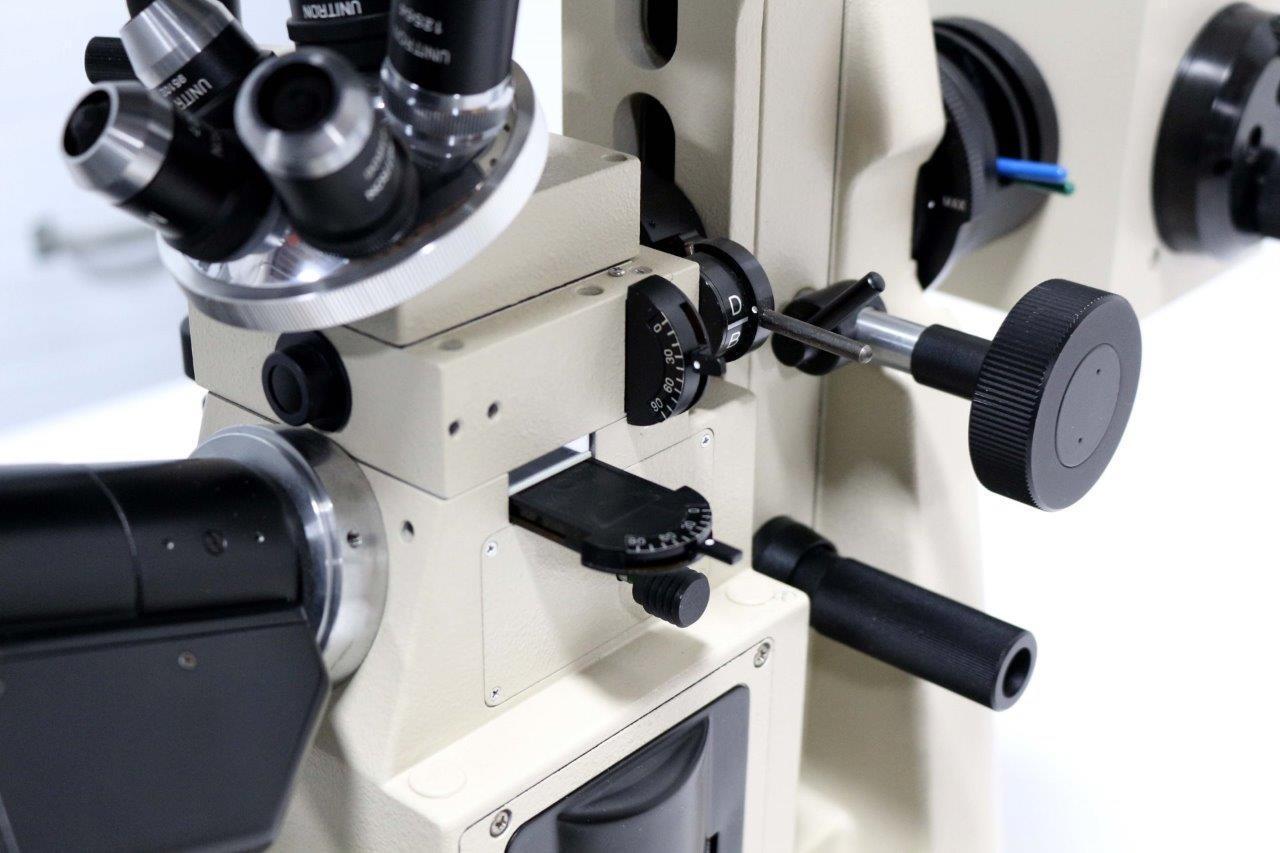

Objectives:
Epi MPL 5X/0.12
Epi MPL 10X/0.25
Epi MPL 20X/0.40
Epi MPL 40X/0.65
Plan M 100X/0.90

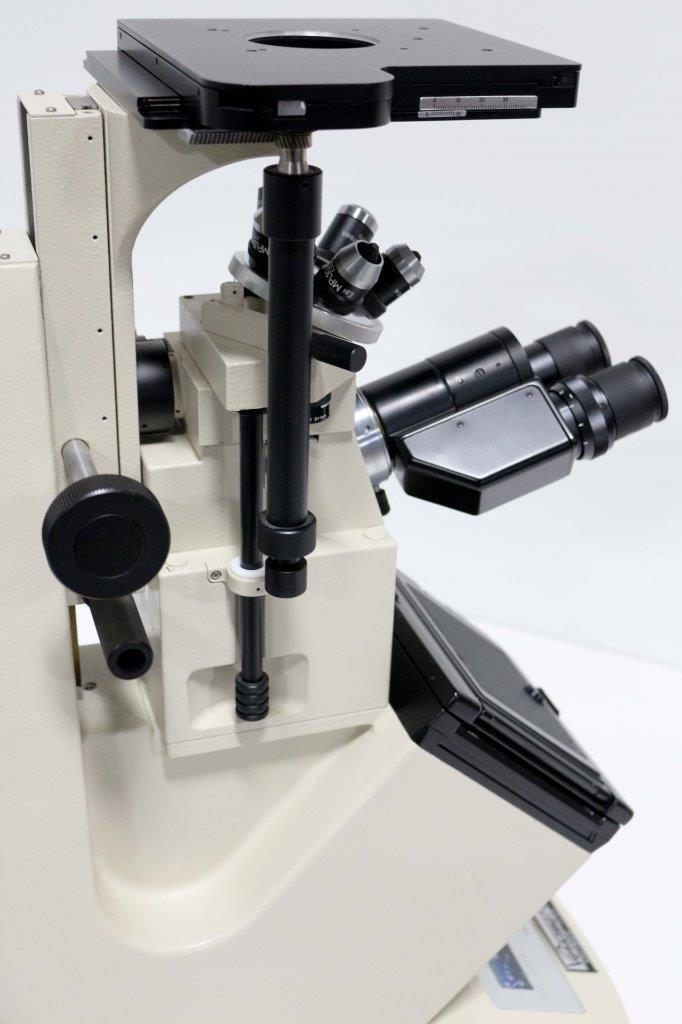

Coaxial X-Y Stage: L: 152mm x W: 52 mm
X-Y-Z Stage travel: X: 25 mm, Y: 32mm, Z: 51 mm
Polaroid 4×5 camera
Unitron EM2 Exposure Meter/Shutter Control included.
Microscope is in very good condition and functions as designed. The optics such as eyepieces, objectives, etc. need to be cleaned. Controls of the microscope such as focusing, switching objectives, rotating polarizer and anywhere else grease has been introduced into the system are operating sluggishly. This is because the grease has hardened over time. This will get better with continued use. Best practice is to have a preventative maintenance routine performed by a qualified technician. This has not been done. Other than that this microscopes operates well.
N.B. If incorrect lubrication is applied in optical areas it could ruin the optics.
The item is in used condition. It is not tested.
Item Representation
Please refer to the item photos to verify that this item will fit your needs. Everything included is shown in the photos.
We have limited knowledge about this item; therefore, we would not be able to answer any questions related to its specifications, technical capabilities, or whether it is suitable for a specific application. We would suggest contacting the OEM or performing an internet search to obtain additional information required.
Freight Shipping and Handling
Handling Cost: There will be a charge for handling/packing. The cost will be based on the packing method. This item will be packed on a wooden skid. For more information please contact us.
Handling Time: Items are typically ready to ship within 3-5 business days of receiving cleared payment.
Blind Shipments: We do not ship blind. All items ship to the address provided in the shipping details section of the sales record.
Expedited Shipping: We do not offer expedited shipping options at this time.
International Shipping: We ship within the US only and do not want our items shipped outside of the US. We do not accept orders from freight forwarders or other 3rd parties which represent international buyers.
Payment
-
Payment is to be made at checkout. If you’re prompted to request a quote for handling cost at checkout please contact us for assistance.
